Raman data library software

Raman spectroscopy

Collect, view, store, retrieve, and archive data
Real-time data import from Raman RunTime

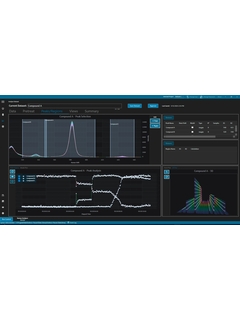

Process trending and visualization
Project-oriented data organization
Data matching for modeling prep
Peak and region analysis with quantitative peak modeling
Contextualized exports to chemometric programs
cGxP version
Spectral data traceability

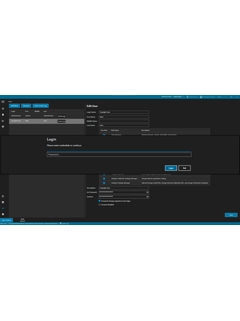

User management
Electronic record keeping
Electronic signatures
Audit trail

Single-station License

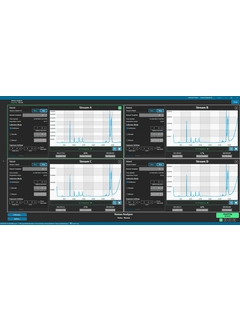

Raman Data Library is a software to view, organize, analyze, and model data for application development and routine monitoring from a standard PC. Raman Rxn analyzer control is possible, too.
With the cGxP version, spectral data traceability, user management, electronic record keeping, electronic signatures, and audit trail help facilitate independent FDA 21 CFR Part 11 compliance.
Furthermore, a connection to a central user administration (e.g. Microsoft Active Directory™) is possible.
The software is available as Core version, or as a cGxP version with added features to help achieve independent FDA 21 CFR Part 11 compliance.
Raman Data Library supports Raman RunTime v6.4 and above, and Raman Rxn2 and Rxn4 analyzers.

Microsoft Windows 11 (Professional 64-bit)

Intel Core i5 or equivalent processor

16 GB

Disk space needed: 10 GB, depending on database size

Screen size: 24" or more with a resolution of 1920 x 1080 or greater (desktops)
Screen size: 13" or more with a resolution of 1920 x 1080 or greater (laptops)
Display aspect ratio of 100%

Data import, SPC from Raman RunTime or legacy software, or OPC-UA from Raman RunTime

RDL has two-way communication with Raman RunTime (both input and output)

Raman Data Library uses a secure embedded database. The database SQLite, provided by a third party, provides a full featured RDBMS (Relational Database Management System).

Microsoft
Windows
All other brand and product names are trademarks or registered trademarks of the companies and organizations in question.
