사양 정보
-
Measured variables
NH3, HF, HCl, H2O
-

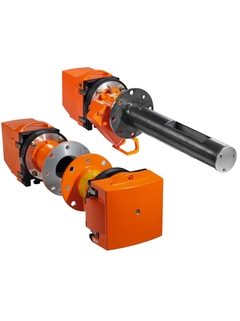

Device version
Cross-duct version

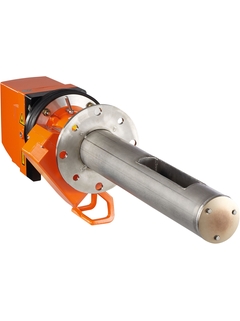

Measuring probe version -
Ambient temperature range
–20 °C ... +50 °C
Depends on parameterization; temperature change max. ±10 °C/h
적용 분야
Reliability, accuracy and very short response times are the decisive features of the GM700 laser gas analyzer. Based on the TDLS (tunable diode laser spectroscopy) principle, the GM700 measures different gas components, such as NH3, HF, HCl oder H2O, by specific light absorption. In-situ measurement is particularly well-suited to the rapid determination of gas concentrations in process control and emission monitoring.
Ammonia slip measurement in DeNOx plants
Emission monitoring of hydrogen fluoride in aluminum smelters
HCI measurement in combustion plants
Device properties:
High selectivity due to high spectral resolution
Short response times
No calibration required
No moving parts: minimal wear and tear
No gas sampling or conditioning required
장점
In-situ measurement directly in the process for nearly uncompromised measured values
Measuring probe or cross-duct types for very good adaptation to the requirements of your measuring task
High reliability during operation
Can also be used in harsh ambient conditions
Enables the detection of quick and short-term process fluctuations
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
-
측정 원리
Diode laser spectroscopy (TDLS)
-
Measured variables
NH3, HF, HCl, H2O
-
Performance-tested measurands
HF
-
Device version
Cross-duct version
Measuring probe version -
Certified measuring ranges
HF: 0 ... 5 mg/m³ / 0 ... 25 mg/m³
Suitability-tested in the cross-duct type -
Measuring range
NH3 (up to 20% H2O by volume): 0 ... 25 ppm / 0 ... 4,000 ppm
NH3 (up to 40% H2O by volume): 0 ... 25 ppm / 0 ... 100 ppm
HCl: 0 ... 10 ppm / 0 ... 3,000 ppm
HF: 0 ... 5 ppm / 0 ... 2,000 ppm
Measuring ranges refer to 1 m measuring path
Measuring ranges depend on application and device version -
Ambient temperature range
–20 °C ... +50 °C
Depends on parameterization; temperature change max. ±10 °C/h -
Ambient humidity
≤ 95 %
Relative humidity; non-condensing -
Degree of protection
IP65/IP66/IP67
-
Conformities
Only for HF
Approved for plants requiring approval
2001/80/EC (13. BImSchV)
2000/76/EC (17. BImSchV)
27. BImSchV
German Clean Air Regulations
EN 15267
EN 14181 -
Product safety
CE
-
-
