사양 정보
-
Process temperature
0 to 50°C
32 to 122 °F -
Process pressure
0 to 6 bar abs.
0 to 87 psi
적용 분야

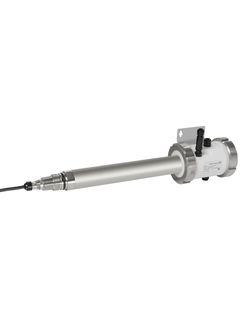

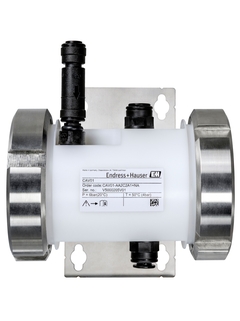

CAV01 allows for monitoring of up to 5 parameters when a Memosens Wave CAS80E spectrometer or a Viomax CAS51D nitrate/SAC sensor is installed. Thanks to the sensors' fast response times and continuous measurements, unexpected events in the process are identified at an early stage. The assembly's integrated pressure cleaning ensures extended maintenance intervals. CAV01 enables accurate measurements at low flows of 0.1 to 10 l/h, resulting in a minimum water loss.
CAV01 flow assembly is suitable for by-pass measurement of various parameters such as SAC54, TOCeq, CODeq, BODeq, DOCeq, turbidity, TSS, APHA/Hazen, nitrate in the following applications:
Drinking water treatment and network monitoring
Quality control of all measuring points in drinking water production
Raw water monitoring
Process water treatment and monitoring
Water re-use monitoring
Cooling water and condensate
Monitoring of municipal and industrial wastewater
Control of aeration basins
장점
Extended maintenance intervals thanks to optimized, automatic pressure cleaning.
Minimum water loss: Precise measurement at low sample flow
Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 50 °C (122 °F)
Full compatibility with all path lengths of Memosens Wave CAS80E and Viomax CAS51D
Simple installation thanks to pre-mounted wall bracket and fixed sensor orientation
Fast maintenance thanks to tool-free deinstallation
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
Loading alternative products
성공 사례
-
-
설치 설명서(EA)
EA CAV01
Flow assembly for optical sensors Viomax CAS51D and Memosens Wave CAS80E
EN KO 27/04/2023언어:
영어
버전:
27/04/2023
파일 크기:
1015.2 KB
파일 이름:
EA01472CEN_0123-00.pdf
-
-
-
설치 설명서(EA)
EA CAV01 kit, seal set
for the CAV01 flow assembly
EN KO 14/08/2023언어:
영어
버전:
14/08/2023
파일 크기:
977.1 KB
파일 이름:
EA01477CEN_0123-00.pdf
-
