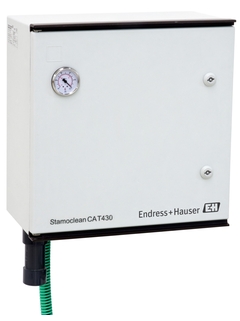

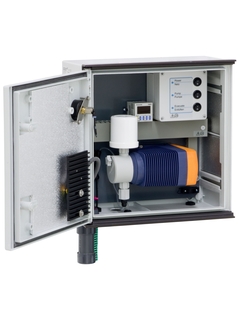

Stamoclean CAT430

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Colorimetric

  • Characteristic

    Sample Preparation. Sample feeding with tubing or membrane pump depending on order code.

  • Size

    Hose pump box 400 x 420 x 230 mm, Filterelement 450 x 350 x 12 mm

  • Design

    Hose pump box GRP, filterelement PES dmembranes, armature and carriage high-grade steel

  • Process temperature

    5°C ... 50°C

  • Ambient temperature

    -25°C ... 60°C

  • Process pressure

    1 ... 3,5 bar

  • Sample flow rate

    Filtrate quantity per filterelement 200ml/h

  • Consistency of the sample

    to max. 8 g/l TS

  • Specials

    different mounting plates available, for routes of transportationlonger than 20 m filtrate transport with compressed air

  • Application

    Water / Wastewater / Processwater

  • Power supply

    115 V AC / 60 Hz or 230 V AC / 50 Hz

  • Consumables

    no filter membranes necessarily
