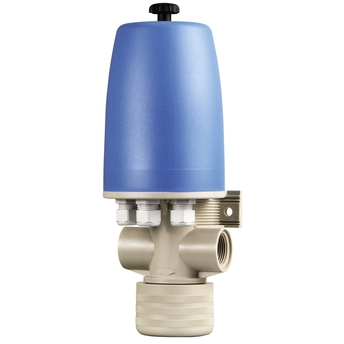

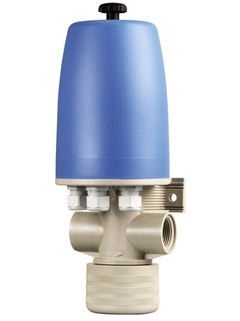

Flowfit CPA250 유량 어셈블리는 상하수 처리 산업에서 배관 설치를 위해 설계되었습니다. 3개의 센서를 위한 공간을 제공하고 유량이 중단된 경우에도 센서를 젖은 상태로 유지해 사용 수명을 연장할 수 있습니다. 또한 내부식성 폴리프로필렌을 사용해 어셈블리 자체의 내구성도 뛰어납니다. Flowfit은 표준 어플리케이션에 완전히 적합한 제품입니다.
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Using seawater to flush toilets can save a lot of drinking water. To ensure a constant water supply, the sensors used must function reliably to meet the water quality objectives (WQO).
Examination of wastewater, using the Liquistation CSF48 and the Liquiport CSP48 mobile, can provide valuable information about the occurrence of Covid 19 infections in a specific area
- 3 electrodes installation locations - 120 mm electrodes - calibration direct in the holder possible with a removable calibration cap - spray cleaning connection with CPR3
Material
Holder: PP Sealing: different materials available
Process temperature
max. 80°C (176°F)
Process pressure
max. 6 bar at 20°C (87 psi at 68°F)
측정 원리
Sensor ORP / Redox
Application
Water
Installation
Flow through holder
Characteristic
Piping, bypass
Design
- 3 electrodes installation locations.- 120mm electrodes- Calibration direct in the holder possible with a removable calibration cap.- Spray cleaning connection with CPR3
Material
Holder : PP, PVDF or stainless steel 1.4571Sealing : different materials available
