Digital pH sensor
Orbisint CPS11D

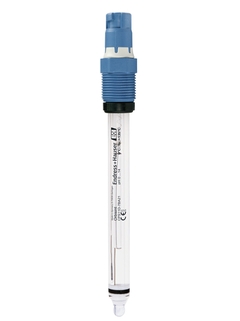

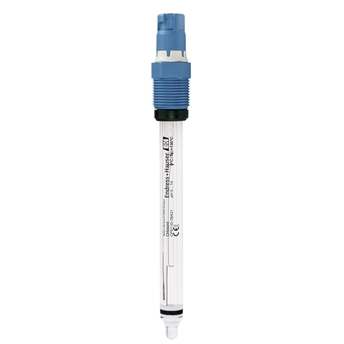

Orbisint CPS11D - Digital pH sensor with dirt-repellent PTFE diaphragma ©Endress+Hauser

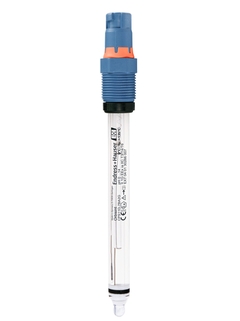

Orbisint CPS11D - Version for hazardous areas ©Endress+Hauser

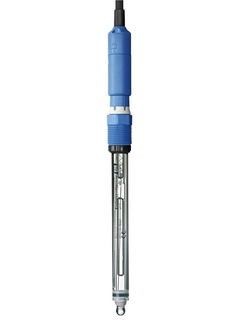

Orbisint CPS11D - Plugged into CYK10 Memosens cable ©Endress+Hauser

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens glass electrode for standard applications

Orbisint CPS11D is the digital all-rounder for process and environmental technology. It measures reliably even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS11D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

  • 장점

    • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

    • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

    • Optional salt...

  • 적용 분야

    • Long-term monitoring and limit monitoring of processes with stable process conditions:
      - Chemical industry
      - Paper industry
      - Power plants (e.g. flue gas washers, boiler feed water)
      - Incineration plants

    • Water treatment:
      - Drinking water
      - Cooling...

특징 및 사양

뒤로

Details

  • 측정 원리

    Glass electrode

  • Application

    Standard applications in process and environment. Long-term monitoring, processes with little change.

  • Characteristic

    Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.

  • Measurement range

    pH 0-14

  • Measuring principle

    Gel compact electrode with PTFE ring-diaphragm.

  • Design

    - all shaft lengths with temperature sensor, advanced gel technology - digital electrode with Memosens technology

  • Material

    Glass / PTFE

  • Dimension

    Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm
    (4.68, 8.77, 14.04 and 16,57 inch)

  • Process temperature

    max. 135°C (274°F)

  • Process pressure

    max. 16 bar (230 psi)

  • Temperature sensor

    NTC 30k

  • Ex certification

    ATEX
    FM
    CSA

  • Connection

    Inductive, digital connection head with Memosens technology.

  • Ingres protection

    IP68

  • Additional certifications

    Also available as Biocompatibility certified SIL version.
