이점 한 눈에 보기
-

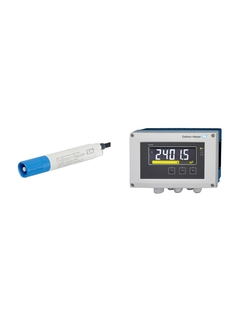

You have an installed base with 4-wire devices and still want to benefit from the advantages of the Liquiline Compact CM82 2-wire transmitter (compact design, Memosens technology, Bluetooth, use in hazardous areas)? Then this bundle is just right for you, as the RIA46 field meter powers up to two CM82 devices simultaneously. This allows you to set up two CM82 measuring points with any combination of pH, ORP, oxygen and conductivity sensors with Memosens technology in your 4-wire environment.
-
Use the CM82 2-wire transmitter in a 4-wire environment
Thanks to its integrated loop power supply, the RIA46 4-wire field meter is able to power one or even two 2-wire transmitters of the Liquiline CM82 series. This allows you to perfectly use the compact and robust field transmitter with your 4-wire infrastructure.
-
True multiparameter transmitter with Memosens technology
Liquiline Compact CM82 is a multiparameter transmitter that can accommodate pH, ORP, conductivity and oxygen sensors. Thanks to Memosens technology and the automatic sensor recognition, within seconds you can replace worn sensors or switch to a sensor of a different measurement parameter.
-
Optional Bluetooth connection
You can connect your CM82 transmitters to your existing smartphones and tablets via a particularly secure Bluetooth connection. This allows you to commission and operate your CM82 measuring points conveniently as well as retrieve measured values and sensor information from a distance. Alternatively, the RIA46 display indicates the measured values of the connected sensors on-site.
-
Visual indication of status diagnostics
The CM82 transmitter is equipped with a red/green LED that permanently displays the diagnostic results of the transmitter and the connected sensor, thus enabling a quick and easy status check on-site.
-
Suitable for hazardous areas
With its international explosion protection approvals, such as IECEx, ATEX, and CSA, the Liquiline Compact CM82 is suitable for hazardous area use. Therefore, it is possible to mount the CM82 in a hazardous area even if the RIA46 is installed in a non-hazardous area.
번들 상세 정보
구성 요소 및 사전 설정
-
장바구니에 있는 번들 내에서 구성 요소를 설정할 수 있습니다.
-
-
| FLEX 선택 | 기술적 우수성 | 단순성 |
|---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
1
-
2
- F
- L
- E
- X
1 채널 트랜스미터
Liquiline Compact CM82
Liquiline Compact CM82는 가장 작은 Memosens 센서용 트랜스미터입니다. 슬림한 하우징을 사용한 덕분에 크기가 케이블 없이 직접 센서를 장착할 수 있는 연결부를 포함해 길이 11 cm, 폭 2 cm에 불과합니다. 센서와 함께 대부분의 어셈블리에 손쉽게 설치할 수 있고, 안전한 Bluetooth 연결을 통해 스마트폰이나 태블릿으로 근처의 모든 CM82 측정 개소를 확인하거나 원격으로 편리하게 작동할 수 있습니다.
-
측정 원리
Potentiometric
-
Application
All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
-
Installation
Connection of digital sensors with Memosens-Protocol
-
Characteristic
Liquiline CM82 is a two-wire transmitter for all areas of process engineering
-
Design
Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
-
Material
Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G -
Dimension
Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch) -
Connection
Connection of digital sensors with Memosens-Protocol
-
Ingress protection
IP67, IP68, NEMA Type 6
-
Input
One channel transmitter
-
Output / communication
4 to 20 mA, HART
-
Additional certifications
CE, CSA C/US GP
-
측정 원리
Potentiometric
-
Application
All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
-
Installation
Connection of digital sensors with Memosens-Protocol
-
Characteristic
Liquiline CM82 is a two-wire transmitter for all areas of process engineering
-
Design
Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
-
Material
Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G -
Dimension
Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch) -
Connection
Connection of digital sensors with Memosens-Protocol
-
Ingress protection
IP67, IP68, NEMA Type 6
-
Input
One channel transmitter
-
Output / communication
4 to 20 mA, HART
-
측정 원리
Potentiometric
-
Application
All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
-
Installation
Connection of digital sensors with Memosens-Protocol
-
Characteristic
Liquiline CM82 is a two-wire transmitter for all areas of process engineering
-
Design
Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
-
Material
Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G -
Dimension
Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch) -
Connection
Connection of digital sensors with Memosens-Protocol
-
Ingress protection
IP67, IP68, NEMA Type 6
-
Input
One channel transmitter
-
Output / communication
4 to 20 mA, HART
-
측정 원리
Potentiometric
-
Application
All sectors, supporting all sensors with the blue Memosens plug-in head, enviromental sector
-
Installation
Connection of digital sensors with Memosens-Protocol
-
Characteristic
Liquiline CM82 is a two-wire transmitter for all areas of process engineering
-
Design
Liquiline CM82 is optionally equipped with Bluetooth for comfortable remote commissioning via Smartphone/Tablets
-
Material
Housing, cover: Peek 151
Strain relief: EPDM
Axial ring Peek 450 G -
Dimension
Diameter: 18.95 mm (0.75 inch)
Length: 114.7 mm (4.52 inch) -
Connection
Connection of digital sensors with Memosens-Protocol
-
Input
One channel transmitter
-
Output / communication
4 to 20 mA, HART
- F
- L
- E
- X
RIA46
Field meter with control unit
Analog measured values are indicated, evaluated and calculated by the field indicator. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
-
측정 원리
Indicators with control unit
-
Measuring principle
Field meter with control unit
-
Function
Display
Loop Power Supply
Transmitter Functionality
Barrier
Signal Isolation
Calculation
Limit Alarm -
Display
Multicolor backlight LCD
White/black/yellow
Bargraph
Unit
TAG
Alarm warning in plain text -
Power Supply
20...250V AC/DC
-
Input
2 x universal (U, I, R, RTD, TC)
-
Output
2 x analogue output (I, U) 1 x loop power supply
-
Output
2 x analogue output (I, U) 1 x loop power supply
-
Software functions
Linearization
Minimum value per channel
Maximum value per channel
Calculation
Band value monitoring -
Certificates
ATEX II(1)GD [Ex ia] IIC
CSA General Purpose
CSA AIS, NI/I/2/ABCDEFG/T4
FM AIS, NI/I/2/ABCDEFG/T4
TIIS [Ex ia] IIC
NEPSI [Ex ia] IIC
UK II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC -
SIL
2
-
Panel mounting
field
-
측정 원리
Display
-
Function
Display
Loop Power Supply
Transmitter Functionality
Barrier
Signal Isolation
Calculation
Limit Alarm -
Certification
ATEX II (1) GD [Ex ia] 4C
CSA AIS
NI/I/2 ABCDEFG/T4
FM AIS
NI/I/2 ABCDEFG/T4
UR C/US -
Input
2 x universal (U, I, R, RTD, TC)
-
Output
2 x analogue output (I, U)
1 x loop power supply -
Relay output
2 x changeover contact
1 x open collector -
Auxiliary power supply / Loop power supply
20...250V AC/DC
-
Dimensions (wxhxd)
Field housing:
199 x 133 x 96 mm
(7.83" x 5.24" x 3.78") -
Software
Linearization
Minimum value per channel
Maximum value per channel
Calculation
Band value monitoring -
Operation
3 keys
Interface CDI to USB at PC + configuration software FieldCare -
Display
Multicolor backlight LCD
White/black/yellow
Bargraph
Unit
TAG
Alarm warning in plain text
