Analog ORP sensor
Ceraliquid CPS42

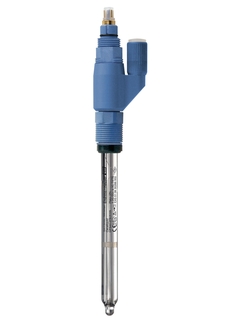

Ceraliquid CPS42 - Analog ORP sensor with refillable liquid KCl electrolyte ©Endress+Hauser

Glass electrode for applications with fast-changing medium compositions or low conductivity

Ceraliquid CPS42 is the analog high performer for harsh chemical applications and media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing you high process safety even in applications with fast-changing medium compositions.

  • 장점

    • Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead

    • Applicable at very low conductivities (= 0.1 µS/cm) thanks to liquid KCl electrolyte

    • Suitable for cleaning in place (CIP) and sterilization in place (...

  • 적용 분야

    Media with very low conductivities or a considerable amount of organic solvents or alcohols and fast changing media:

    • Chemical industry

    • Power plants, e.g. boiler feed water

    • Life sciences, e.g. water for injection

    With ATEX, FM and CSA approval for use in...

특징 및 사양

뒤로

Details

  • 측정 원리

    Sensor ORP / Redox

  • Application

    - Special applications with high requirements with regard to accuracy, speed - rapidly changing composition of media, highly clogging media, low conductivities.

  • Characteristic

    - Gel-free, refillable electrolyte - greatest accuracy - can be subject to pressure to prevent clogging.

  • Measurement range

    -1500 mV - +1500 mV

  • Measuring principle

    - Liquid filled compact electrode with ceramic diaphragm - platinum ring

  • Dimension

    Diameter: 12 mm
    Shaft lengths: 120, 225 mm

  • Process temperature

    -15°C - 130°C

  • Process pressure

    max. 8bar

  • Ex certification

    ATEX
    FM
    CSA
    TIIS

  • Connection

    TOP68 connection head

  • Ingres protection

    IP68

  • Additional certifications

    EHEDG
