Vibronic
Point level detection
Nivotester FTL375P

Switching unit with intrinsically safe signal circuit for connection to Liquiphant or Soliphant

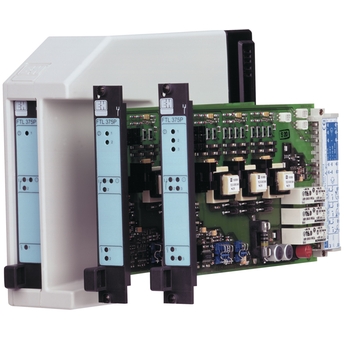

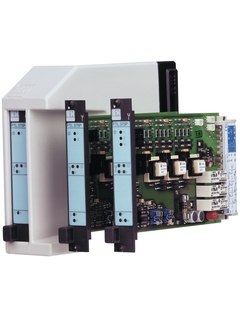

  • Nivotester FTL375P ©Endress+Hauser

The switching unit FTL375P is used for point level detection in liquid tanks and bulk material silos, also in hazardous explosion areas. Also suitable for liquid detection in pipes for dry running protection for pumps and overfill prevention for tanks with combustible or non-combustible liquids harmful to water. Up to 3 measuring devices for two-point control and point level detection. Functional safety up to SIL3 in accordance to IEC 61508 using Liquiphant with electronic insert FEL57.

장점

  • Nivotester FTL375P for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)

  • Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas

  • Functional safety up to SIL2 through line monitoring. Simplified proof testing to WHG/SIL by pressing push-button

  • Racksyst plug-in card in Europa card format to DIN 41494, 4 HP wide, 3 HU high

  • Inputs are galvanically isolated from each other, from the mains and from the outputs

적용 분야

Switching unit with intrinsically safe signal circuit for connection to Liquiphant or Soliphant.

  • Ambient temperature: -20 to +70°C (-4 to +158°F)

  • International explosion protection certificates, overfill prevention WHG, marine approvals

특징 및 사양

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

기존 제품 / 신제품

선행 제품: FTL370, FTL372

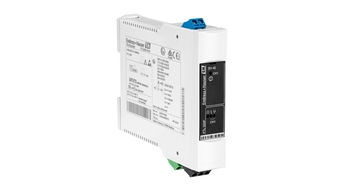

후속 제품: Nivotester FTL325P
