레이다 레벨계
Micropilot FMR53

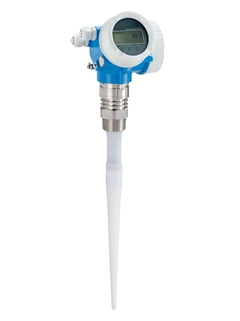

Micropilot FMR53 aluminum housing ©Endress+Hauser

Time-of-Flight 측정 원리

Micropilot FMR5x와 Levelflex FMP5x의 시운전 영상

안전한 레벨 측정을 위한 HistoROM 데이터 관리 개념

새로운 Multi-Echo Tracking 평가에 의한 안전한 레벨 측정

액체 레벨 측정 어플리케이션 간소화

Micropilot FMR53은 액체 레벨 측정 어플리케이션을 간소화합니다. 슬림한 로드 안테나가 장착된 FMR53 Free Space 레이다는 프로세스 연결부가 작은 경우에 특히 적합합니다. 로드 안테나의 PTFE 코팅과 플랜지 도금 덕분에 유해한 유체에서도 강합니다. Micropilot FMR53은 액체, 페이스트 및 슬러리의 레벨을 비접촉식으로 연속 측정하며, 측정이 유체, 온도 변화, 가스층 또는 증기 변화의 영향을 받지 않습니다.

  • 장점

    • 제품 및 프로세스 조건이 변해도 신뢰성을 유지하는 비접촉식 측정

    • 빠르고 간편한 시운전, 유지보수 및 진단을 위한 HistoROM 데이터 관리 개념

    • 새로운 Multi-Echo Tracking 평가 덕분에 용기에 방해물이 있어도 최고의 신뢰성 유지

    • IEC 61508부터 SIL3 (동종 리던던시)에 따라 개발된 하드웨어 및 소프트웨어

    • 하트비트(Heartbeat) 기술을 통해 전체 수명 주기 동안 경제성과 플랜트 운영 안전성 제공

    • 제어 또는 자산 관리 시스템에...

  • 적용 분야

    프로세스 연결부가 작은 경우에 특히 적합, 화학적으로 유해한 유체에서 사용 가능한 PTFE 센서.

    • 프로세스 연결부: 나사 또는 플랜지

    • 온도: -40 ~ +150°C (–40 ~ +302°F)

    • 압력 범위: -1 ~ +40bar (–14.5 ~ +580psi)

    • 최대 측정 범위: 20m (66ft)

    • 정확성: ±6mm

    • C 밴드: 6GHz

    • 국제 방폭 인증, 오버필 방지 WHG, SIL, 5 포인트 선형 프로토콜

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar

  • Characteristic / Application

    For common non-contact continuous level measurement in liquids,
    especially suited for small process connections and for chemically aggressive media;
    Rod antenna with PTFE coating

  • Specialities

    Heartbeat Technology,

    SIL 2 according to IEC 61508,

    Bluetooth® commissioning,

    Operation and maintenance SmartBlue App,

    Safety and reliability with Multi-Echo Tracking,

    HistoROM,

    RFID TAG for easy identification

  • Supply / Communication

    2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

    4-wire (HART)

    Bluetooth® wireless technology and App (optional)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 6 mm (0.24 in)

  • Ambient temperature

    -40...+80 °C

    (-40...+176 °F)

  • Process temperature

    -40...+150 °C

    (-40...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...40 bar

    (Vacuum...580 psi)

  • Main wetted parts

    PTFE, PVDF

  • Process connection

    Thread:

    MNPT 1 1/2, R 1 1/2

    Flange:

    DN50...DN150,

    ASME 2"...6",

    JIS 10K

  • Application

  • Max. measurement distance

  • Radar_Mediengruppe_en.jpg
  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

    Bluetooth® wireless technology

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC

  • Safety approvals

    Overfill prevention WHG

    SIL

  • Design approvals

    EN 10204-3.1

    ASME B31.3

    AD2000

  • Options

    Display,

    Remote operation via SmartBlue App using Bluetooth®,

    Customized parameterization,

    Gas-tight feed through,

    PWIS free

  • Application limits
