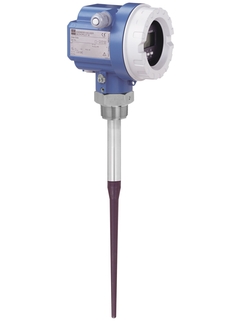

Micropilot M FMR231

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar

  • Characteristic / Application

    Cost-effective solution for aggressive media

  • Supply / Communication

    2-wire (HART / PROFIBUS PA / FOUNDATION Fieldbus)

  • Frequency

    C-band (~6 GHz)

  • Accuracy

    +/- 10 mm

  • Ambient temperature

    -40 °C...+80 °C

    (-40 °F...+176 °F)

  • Process temperature

    -40 °C...+150 °C

    (-40 °F...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...40 bar

    (Vacuum...580 psi)

  • Main wetted parts

    PTFE, PPS + 316L

  • Process connection

    Thread:

    NPT 1 1/2, R 1 1/2

    Flange:

    DN50...DN150,

    ASME 2"...6",

    JIS 10K

  • Process connection hygienic

    Tri-Clamp ISO2852

    DIN11864-1

    DIN11851

  • Application

  • Max. measurement distance

    20 m (65 ft)

  • https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_Mediengruppe_en.jpg https://portal.endress.com/picpool/sft/prodcont/technicalinfo/Radar_not_selected_FMR231.jpg
  • Communication

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, IECEx, TIIS, NEPSI

    Overfill prevention WHG

    SIL

    EN10204-3.1

    Marine GL/ABS/NK

  • Application limits

    Maximum measuring range is dependent on the tank form and/or application


    Nozzle height > 250 mm

    FMR230,240,245

    Low DK

    FMR230,240,245

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification

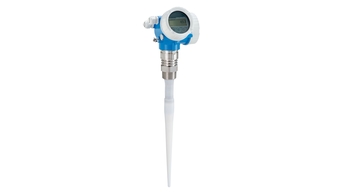

  • 신제품
