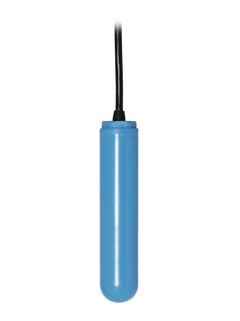

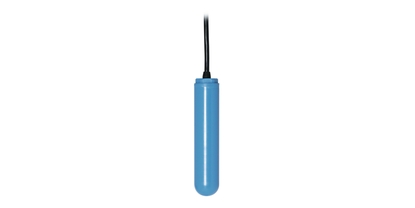

Float switch
Liquifloat FTS20
For point level detection in liquids
The Float switch FTS20 is a simple and cost-effective solution for point level detection in appropriate fluids. It is used in tanks and vessels as a pump protector or level alarm in open basins, e. g. in sewerage treatment plants. The float switch has two output options, a NAMUR switching signal or a change-over contact.
-
장점
Reliable and cost-effective point level detection in liquids
Highest product and measurement safety due to different cable and sensor materials for different media
Electrical connections to NAMUR for hazardous areas (to Zone 1) or change-over contact (AC...
-
적용 분야
Point level switch for appropriate fluids. Used in tanks and vessels as an overfill prevention or as a pump protector. Different sensor/cable materials, e.g. PP, PVC, PUR and CSM, allow application in oily or aggressive liquids and hazardous areas.
...
문서 / 매뉴얼 / 소프트웨어
-
Floating Switch FTS20
Technical Information and Operating
Instructions
Point Level Switch for Liquids
Short Instruction (KA)05/16독일어 , 영어 , fr -
Mesure de niveau
Aperçu des produits pour des applications dans des liquides et des solides en vrac
Fields of Activities (FA)03/17fr -
Level measurement
Product overview for applications in liquids and bulk solids
Fields of Activities (FA)03/17영어 -
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos
Fields of Activities (FA)03/17스페인어 -
Level measurement
Product overview for applications in liquids and bulk solids
Fields of Activities (FA)03/17영어 -
Füllstandmesstechnik
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
Fields of Activities (FA)03/17독일어 -
Catálogo soluciones esenciales
Alta calidad a precios competitivos
Competence Brochure (CP)01/17스페인어 -
E-direct Produktkatalog 2018-2019
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)10/18독일어 -
Catalogue Produits E-direct 2018/2019 Français
La qualité Endress+Hauser à petit prix !
Endress+Hauser Catalogues (EC)10/18fr -
E-direct Produktkatalog 2016/2017 - Ausgabe Schweiz
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)10/15독일어 -
E-direct Produktkatalog 2017/2018 - Ausgabe Österreich
Hohe Qualität zum kleinen Preis!
Endress+Hauser Catalogues (EC)09/17독일어 -
Liquifloat FTS20
Grenzschalter Schwimmschalter für Flüssigkeiten Sensor Grenzschalter für Flüssigkeiten und kommt in Tanks und Behältern, z. B. in Kläranlagen, zum Einsatz und wird dort zur Überfüllsicherung oder zum Trockenlaufschutz von Pumpen verwendet. Es stehen verschiedene Anschlusskabel für Säuren, Laugen, Öle oder Schmutzwasser zur Verfügung.
Tender Text06/16독일어 -
Floating Switch
Product Code: FTS20- Declaration Number: TUEV01ATEX1709E
Manufacturer Declaration독일어 , 영어 , fr -
Floating Switch
Product Code: FTS20- Declaration Number: TUEV01ATEX1709E
EU Declaration독일어 , 영어 , fr -
Floating Switch
Product Code: FTS20- Declaration Number: TUEV01ATEX1709
EU Declaration독일어 , 영어 , fr -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch, Einstabsonde, Dreistabsonde, Doppelstabsonde
Product Code: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325- Region/Country: Russia (Declaration of Conformity) Approval Number: RU D-DE.MO10.B.05531
Miscellaneous러시아어 -
Floating Switch
Product Code: FTS20- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TС RU D-DE.MU62.B.02537
Miscellaneous러시아어 -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch
Product Code: FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW31-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84-, FTI52-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51- Region/Country: Russia (Declaration of Conformity) Approval Number: RU D-DE.MO10.B.05528
Miscellaneous러시아어 -
Floating Switch
Product Code: FTS20- Region/Country: Russia (TR CU) Approval Agency: EAC Approval Number: TC № RU D-DE.AL32.B.07215
Miscellaneous러시아어
액세서리 / 예비 부품
-
-
Order code
Zur Anzeige der Ersatzteile bitte
-
Order code
folgende Teilenummer eingeben
-
Order code 71035522
Liquifloat T FTS20 AC/DC PP/CSM, 20m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: CSM. Cable length: 20m.
-
Order code 52010124
Liquifloat T FTS20 AC/DC PP/CSM, 5m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: CSM. Cable length: 5m.
-
Order code 71035521
Liquifloat T FTS20 AC/DC PP/PUR, 20m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PUR. Cable length: 20m.
-
Order code 52010123
Liquifloat T FTS20 AC/DC PP/PUR, 5m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PUR. Cable length: 5m.
-
Order code 71035520
Liquifloat T FTS20 AC/DC PP/PVC, 20m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PVC. Cable length: 20m.
-
Order code 52010122
Liquifloat T FTS20 AC/DC PP/PVC, 5m
Point level switch, float. Application: liquids. Microswitch double throw 250VAC/150VDC. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PVC. Cable length: 5m.
-
Order code 71035518
Liquifloat T FTS20 NAMUR PP/CSM, 20m
Point level switch, float. Application: liquids. 2-wire EN60947-5-6 (NAMUR). For use with isolated amplifier. ATEX II 2G EEx ia IIB T5. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: CSM. Cable length: 20m.
-
Order code 52010121
Liquifloat T FTS20 NAMUR PP/CSM, 5m
Point level switch, float. Application: liquids. 2-wire EN60947-5-6 (NAMUR). For use with isolated amplifier. ATEX II 2G EEx ia IIB T5. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: CSM. Cable length: 5m.
-
Order code 52010120
Liquifloat T FTS20 NAMUR PP/PUR, 5m
Point level switch, float. Application: liquids. 2-wire EN60947-5-6 (NAMUR). For use with isolated amplifier. ATEX II 2G EEx ia IIB T5. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PUR. Cable length: 5m.
-
Order code 71035516
Liquifloat T FTS20 NAMUR PP/PVC, 20m
Point level switch, float. Application: liquids. 2-wire EN60947-5-6 (NAMUR). For use with isolated amplifier. ATEX II 2G EEx ia IIB T5. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PVC. Cable length: 20m.
-
Order code 52010119
Liquifloat T FTS20 NAMUR PP/PVC, 5m
Point level switch, float. Application: liquids. 2-wire EN60947-5-6 (NAMUR). For use with isolated amplifier. ATEX II 2G EEx ia IIB T5. Cylindric shape fits through G1. Floating body: PP (Polypropylene). Cable: PVC. Cable length: 5m.
-
