Liquipoint FTW23

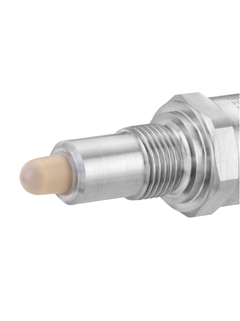

Liquipoint FTW23 ©Endress+Hauser

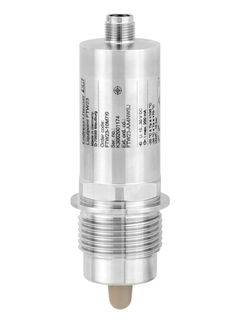

Liquipoint FTW23 ©Endress+Hauser

Liquipoint FTW23의 시연

모든 산업 부문에 다양하게 사용 가능한 FTW23 - Liquiphant, Liquipoint, Cerabar, Ceraphant

Liquipoint FTW23 ©Endress+Hauser

수성 액체를 위한 비용 효율적인 포인트 레벨 스위치

Liquipoint FTW23은 식품 산업을 위해 개발되어 사용되고 있으며, 모든 국제 위생 요구 사항을 충족합니다. 모든 산업 부문의 다양한 어플리케이션에서 사용할 수 있으며, 축적물이 없는 액체의 어플리케이션에 사용됩니다. IO-Link 기능이 있어 손쉽게 파라미터를 설정할 수 있습니다.
효율성:
- 비용 효율성
- 시험 자석을 사용한 기능 검사
편리성:
- 교정 또는 조정 불필요
- 특수한 공구가 필요하지 않은 플러그 앤 플레이 방식
- IO-Link 연결 지원

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • 컴팩트한 디자인으로 위험한 조건이나 접근하기 어려운 장소에서도 간편하게 설치 가능

    • IO-Link를 지원해 엔지니어링 도구를 통해 손쉽게 계기를 구성할 수 있어 비용과 복잡성이 감소

    • CIP 및 SIP 세척 가능(최대 방진방수 등급 IP 69)

    • 각각의 유체에 맞도록 조정할 필요 없음

    • LED 디스플레이를 통해 현장에서 기능 점검 가능

  • 적용 분야

    저장 탱크, 혼합 용기 및 배관에서 사용. 수성 액체용. 유전상수가 20 이상인 유체를 위해 기본 설정, 유전 상수가 1.5 이상인 유체의 경우 IO-Link를 통해 조정.

    • 프로세스 연결부: 나사형

    • 온도: -20 ~ +100°C (-4 ~ +212°F), 1시간 동안 135°C (275°F)까지 CIP/SIP

    • 압력: -1 ~ 16bar abs (-14.5 ~ 232psi)

    • 위생 인증

특징 및 사양

뒤로

Details

  • 측정 원리

    Conductive

  • Characteristic / Application

    Compact point level switch for using in water based liquids

  • Specialities

    CIP and SIP suitable

  • Supply / Communication

    10…30 V DC

  • Ambient temperature

    -20...70°C

    -4... 158°F

  • Process temperature

    Standard:
    -20 ... 100°C

    Cleaning:

    -20 ... 135°C for 1h

    -4 ... 275F for 1h

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 16 bar

    Vacuum ....232 psi

  • Main wetted parts

    Sensor: 316L

    Sensor isolation: PEEK

  • Process connection

    Thread G1, G1/2, G3/4, M24

  • Communication

    DC PNP

    IO- Link

  • Certificates / Approvals

    CSA C/US

  • Design approvals

    EN 10204-3.1

  • Hygienic approvals

    3A, EHEDG

  • Options

    Weld-in adapter,

    Process adapter for hygienic process connections

  • Application limits

    Conductive foam is recognizes as a liquid

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
  • 57
    • Nr 57 Order code 71194296

      Sealing ring G1/2, 21x26, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FTI51, FTI55, FTL31/FTL33, FTW23/FTW33.

    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 71258357

      Weld-in adapter G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33.

    • Order code 52028295

      Weld-in adapter G3/4, d=29, 316L, 3.1

      Flush mount process connection. For pipe-mounting. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33.

    • Order code 71258355

      Weld-in adapter G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, 11371. Usage: TMR35.

    • Order code 52018765

      Weld-in adapter G3/4 d=50, 316L, 3.1

      Flush mount process connection Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, 11371. Usage: TMR35.

    • Order code 71258358

      Weld-in adapter G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B.

    • Order code 71086117

      O-ring 14.9x2.7 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ 80. USP Class VI. Usage: Weld-in adapter G3/4, 316L, (71258355) vesselmounting, (71258357) pipe-mounting, flush mount, FTL31/FTL33, FTW23/FTW33, QMW43, Weld-in adapter G3/4, 316L, 3.1, (52018765) vesselmounting, (52028295) pipe-mounting, flush mount, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5 pcs.

      Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.

    • Order code 52023997

      Process adap.M24 Variv. N DN50 PN40,316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024004

      Proc.adap.M24 Variv.N DN50 PN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52023996

      Process adap. M24 Variv.F DN32 PN40,316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024003

      Proc.adap.M24 Variv.F DN32 PN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52023998

      Process adapter M24 DIN11851 DN50, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024005

      Process adap. M24 DIN11851 DN50,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52026997

      Process adapter M24 SMS 1-1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52026999

      Process adapter M24 SMS 1-1/2",316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B. Exchange process connection PTP35.

    • Order code 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35. process adapter M24.
