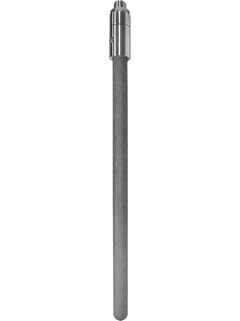

TWF11
Protection tube for high temperature assemblies

TWF11
Protection tube for high temperature assemblies ©Endress+Hauser

For steel treatment, concrete furnaces and primaries with very high process temperatures

Measuring points with extremely high process temperatures require these special ceramic protection tubes. Made from special materials, it serves as protection from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety. It is designed as replacement part for the high temperature TC thermometer TAF11 by Endress+Hauser.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Long lifetime by usage of innovative protection tube materials with increased wear and chemical resistance

    • Long term stable measurement due to sensor protection with non-porous materials

    • Replaceable parts

  • 적용 분야

    Applicable for steel treatment (annealing), concrete furnaces and primaries. Accessory for high temperature assembly TAF11.

    Process temperatures up to +1600 °C (+2912 °F).

특징 및 사양

뒤로

Details

  • 측정 원리

    Fabricated Thermowell

  • Characteristic / Application

    metric style

    Fabricated from segments

    ceramic protection tube

    process connection as compression fitting

    Replacement part for TAF11

  • Head connection

    M24 x 1,5

    groove for DIN A Head

  • Maximum standard immersion length

    1.500 mm (59,06")

  • Max. immersion length on request

    4.000 mm (157,48")

  • Process connection

    compression fitting:

    G3/4"

    G1"

    G11/2"

    adjustable Flange

  • Thermowell root diameter

    14,0 mm (0,55")

    16,0 mm (0,59")

    17,0 mm (0,68")

    22,0 mm (0,87")

    24,0 mm (0,94")

    26,6 mm (1,05")

  • Medium contact material

    Ceramic (C610)

    silicon nitride ceramic (SiN)

    sintered silicon carbide (SiC)

  • Tip shape

    straight

  • Temperature range

    -50...1650 °C (-58...3.002 °F)

  • Max. process pressure (static)

    1 bar (15 psi)
