사양 정보
Max. process pressure (static)
Maximum standard immersion length
Max. immersion length on request
적용 분야
Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

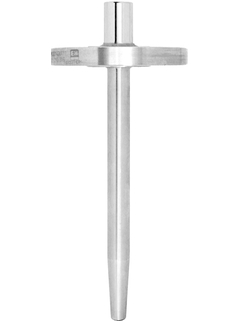

TA575 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.
장점
The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements
A wide choice of standard materials and flanged connections is available; special versions can be ordered according to specification
Different grades of surface finishing are also available
The thermowell stem shape is conical
The process connection is flanged with double sided standard or full penetration weld
©Endress+Hauser
FLEX 선택
기술적 우수성
단순성
Fundamental 선택
기본적인 측정 요구사항 충족
기술적 우수성
단순성
기술적 우수성
단순성
Extended 선택
혁신적인 기술로 프로세스 최적화
기술적 우수성
단순성
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
기술적 우수성
단순성
Loading alternative products
Characteristic / Application
metric style flanged process connections round extension
Head connection
internal thread: 1/2" NPT 1/2" NPSM
Maximum standard immersion length
Max. immersion length on request
Process connection
flange: ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) ASME 1" 600 RF (B16.5) ASME 1 1/2" 150 RF (B16.5) ASME 1 1/2" 300 RF (B16.5) ASME 1 1/2" 600 RF (B16.5) ASME 1 1/2" 1500 RF (B16.5) ASME 1 1/2" 600 RTJ (B16.5) ASME 2" 300 RF (B16.5) ASME 2" 600 RF (B16.5) ASME 2" 300 RTJ (B16.5) ASME 2" 600 RTJ (B16.5) DN25 PN16 B1 DN25 PN40 B1 DN40 PN40 B1 DN50 PN40 B1
Medium contact material
1.4401 (316) 1.4404 (316L) 1.4571 (316Ti)
Wetted part finishing (Ra)
< 0.8 μm (31.50 μin) < 1.6 μm (63.00 μin)
Tip shape
straight conical conical tapered
Temperature range
-200...700 °C (-328...1.292 °F)
Max. process pressure (static)
Max. process pressure at 400 °C
depends on process connection
최다 다운로드
Omnigrad TA575, TA576
Technical Information
Heavy duty - general purposethermowell made of drilled barstock
material with flanged weld type
언어:
영어
버전:
26/05/2014
파일 크기:
347.7 KB
파일 이름:
TI01128TEN_0113.pdf
16 설명서
Omnigrad TA575, TA576
Technical Information
Heavy duty - general purposethermowell made of drilled barstock material with flanged weld type
EN
KO
독일어 네덜란드어
26/05/2014
언어:
영어
버전:
26/05/2014
파일 크기:
347.7 KB
파일 이름:
TI01128TEN_0113.pdf
Omnigrad TA series Industrial protecting tubes
EN
KO
French 중국어
26/09/2005
언어:
영어
버전:
26/09/2005
파일 크기:
127.9 KB
파일 이름:
TI138ten.pdf
Industrial Protecting Tube
omnigrad TA575
Heavy duty - General purpose From round bar stock Flanged weld type Also Dow Chemical G6D-7002-00
EN
KO
스페인어 French 폴란드어
01/10/1997
언어:
영어
버전:
01/10/1997
파일 크기:
137 KB
파일 이름:
TI162ten_1097.pdf
Operating instructions for thermowells for EAC approval
언어:
영어
버전:
01/12/2016
파일 크기:
1.3 MB
파일 이름:
BA01469TEN_0116.pdf
Technical documentation in other languages
언어:
영어
버전:
14/07/2021
파일 크기:
478.5 KB
파일 이름:
SD02429R09EN_0121.pdf
Thermometer und Transmitter für die Prozessindustrie
언어:
독일어
버전:
17/05/2023
파일 크기:
17.9 MB
파일 이름:
FA00006Tde_2223_online.pdf
Thermometers and transmitters for the process industry
언어:
영어
버전:
17/05/2023
파일 크기:
18 MB
파일 이름:
FA00006Ten_2223_online.pdf
Capteurs et transmetteurs pour les industries de process
언어:
French
버전:
20/12/2019
파일 크기:
11.3 MB
파일 이름:
FA00006TFR-1919-PVTEMP-BD.pdf
Catálogo medición temperatura
Termómetros y transmisores para la industria de proceso
언어:
스페인어
버전:
20/04/2018
파일 크기:
5.5 MB
파일 이름:
FA00006Tes_Catalogo Temperatura_1818.pdf
Termometri e trasmettitori per l'industria di processo
언어:
이탈리아어
버전:
17/02/2020
파일 크기:
30.6 MB
파일 이름:
FA00006TIT_2020.pdf
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
The unit is not repairable
