Omnigrad TA565
Barstock thermowell

Omnigrad TA565

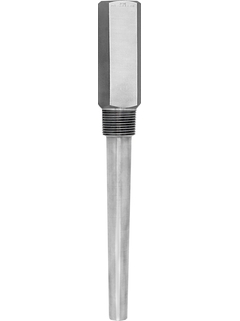

Barstock thermowell ©Endress+Hauser

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • The extension and the immersion length as well as the bar dimensions can be chosen according to process requirements

    • A wide choice of standard diameters and materials is available; other versions can be ordered according to specification

    • Different grades...

  • 적용 분야

    TA565 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

특징 및 사양

뒤로

Details

  • 측정 원리

    Bar stock Thermowell

  • Characteristic / Application

    metric style

    threaded process connection

    hexagonal extension

  • Head connection

    internal thread:

    1/2" NPT

  • Maximum standard immersion length

    150 mm (5,91")

  • Max. immersion length on request

    300 mm (11,81")

  • Process connection

    internal thread:

    1/2" NPT

  • Thermowell root diameter

    19,5 mm (0,78")

    20 mm (0,79")

    25 mm (0,98")

    27 mm (1,06")

  • Medium contact material

    1.4401 (316)

    1.4404 (316L)

    1.4571 (316Ti)

  • Wetted part finishing (Ra)

    < 0,8 μm (31,50 μin)

    < 1,6 μm (63,00 μin)

  • Tip shape

    straight

    conical

  • Temperature range

    -200...700 °C (-328...1.292 °F)

  • Max. process pressure (static)

    500 bar (7252 psi)

  • Max. process pressure at 400 °C

    300 bar (4351 psi)
