사양 정보
-
Accuracy
class 2 acc. to IEC 60584
-
Response time
t50 = 3 s
t90 = 7 s -
Max. process pressure (static)
at 20 °C: 20 bar (290 psi)
-
Operating temperature range
-40 °C ...1.100 °C
(-40 °F ...2.012 °F) -
Max. immersion length on request
up to 100.000,00 mm (3.937,01'')
적용 분야

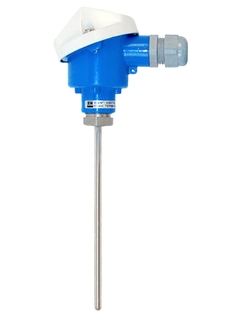

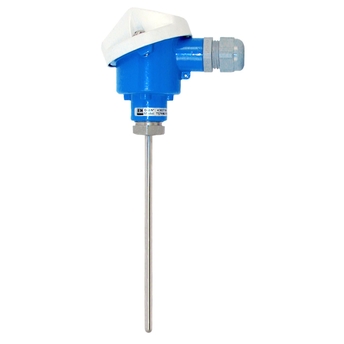

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
TEC420 sheathed thermocouples cover temperature ranges from -40°C to 1100°C depending on the type of thermocouple. They can be used in low pressure applications in direct contact with the medium or protected by a thermowell. They can also be used in all applications where small immersion lengths are needed. Special attention should be paid to the maximum operating temperature of the connection head (80 °C if transmitter included).
장점
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
-
기술 정보(TI)
Technical Information
Omnigrad TEC420
Thermocouple insetEN KO 01/11/1994언어:
영어
버전:
01/11/1994
파일 크기:
105.9 KB
파일 이름:
TI076ten_1194.pdf
-
-
-
Ex 안전 지침서(XA)
-
-
-
Ex 안전 지침서(XA)
-
-
-
Ex 안전 지침서(XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEN KO 10/03/202002/11/2016언어:
영어
버전:
10/03/2020
파일 크기:
171.9 KB
파일 이름:
XA01459TEN_0220.pdf
-
-
-
제조사 신고서
Product family: Process TC direct contact
Product root: TEC420-
Declaration number: HE_00497_01.17
Manufacturer specification: RoHS언어:
영어
버전:
13/03/2017
파일 크기:
189.1 KB
파일 이름:
HE_00497_01.17 China RoHS TEC420.pdf
-
-
-
EU 선언
Product family: Low cost RTD general purpose, Process RTD direct contact, Process RTD direct in contact, Process RTD general purpose , Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC general purpose, Process TC heavy duty, RTD thermometer, TC heavy duty
Product root: TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC42
0-, TH11-, TH12-, TH13-, TH14-, TH15-, TH17-, TH18-, TH27-, TH51-, TH52-, TH53-, TH54-, TH55-, TH56-, TM101-, TM111-, TM112-, TM121-
, TM131-, TM151-, TM152-, TM401-, TM402-, TM411-, TM412-, TMT142C-, TMT142R-, TMT162C-, TMT162R-, TR10-, TR11-, TR12-, TR13-, TR15-,
TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TSM187-, TSM487-, TST187-, TST3
10-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST434B-, TST487-, TST602-, TST90-
Declaration number: EC_00136_04.24EN KO 20/02/2024언어:
영어
버전:
20/02/2024
파일 크기:
150.6 KB
파일 이름:
EC_00136_04.24.pdf
-
-
-
EU 선언
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC genera l purpose, Process TC heavy duty
Product root: TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM151-, TM411-, TM412-,
TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-
Declaration number: EC_00169_04.23EN KO 26/07/2023언어:
영어
버전:
26/07/2023
파일 크기:
166.4 KB
파일 이름:
EC_00169_04.23.pdf
-
-
-
UK 적합성 평가
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC genera l purpose, Process TC heavy duty
Product root: TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-
, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TS111-, TSC310-, TST310-
Declaration number: UK_00428_01.21언어:
영어
버전:
30/08/2022
파일 크기:
130.7 KB
파일 이름:
UK_00428_01.21.pdf
-
-
-
UK 적합성 평가
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process TC direct contact, Process TC direct in contact, Process TC heavy duty
Product root: TC15-, TC66-, TEC420-, TM101-, TM111-, TM121-, TM131-, TPC100-, TPC200-, TPR100-, TR10-, TR15-, TR66-, TS111-, TS211-,
TSC310-, TST310-, TST434-, TST602-
Declaration number: UK_00473_01.21언어:
영어
버전:
01/12/2021
파일 크기:
124.5 KB
파일 이름:
UK_00473_01.21.pdf
-
