U.S. Style Easytemp TSM470F

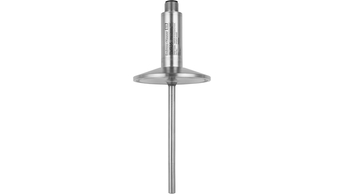

Product picture of: U.S. Style Easytemp TSM470F

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    compact temperature probe

    hygienic design

    hygienic process connection

    transmitter included (fixed range)

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • Max. immersion length on request

    up to 762 mm (30,00'')

  • Material protection tube/ thermowell

    1.4435 (316L)

  • Process connection

    hygienic:

    clamp connections TRI-Clamp / Micro-Clamp

  • Tip shape

    straight

    reduced

  • Surface roughness Ra

    0,8 μm (32 μin.)

  • Operating temperature range

    PT 100:

    -40 °C ... 150 °C

    (-40 °F ... 302 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    63% rt = 4 s

  • Certification

    3A

    German Lloyd (GL) - marine approval

    UL 3111-1
