WirelessHART Fieldgate SWG70

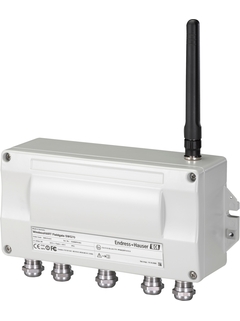

WirelessHART Fieldgate SWG70 with Ethernet and RS-485 interfaces © Endress+Hauser

The Simply Explained video, “No-hassle wireless – with WirelessHART” demonstrates how the efficiency of a flue gas denitrification unit can be increased while at the same time saving costs.

Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

Endress+Hauser's WirelessHART Fieldgate SWG70 has been designed to act as interface between a system using Ethernet or RS-485 physical layer and WirelessHART network. The gateway is designed for mounting in explosion hazardous areas Zone 2. An integral or remote antenna can be mounted according to the needs of the application.

  • 장점

    • Easy commissioning and diagnosis of a self-organizing WirelessHART network

    • Seamless integration of field device information into superior system applications with standardized protocols, such as MODBUS, EtherNet/IP, HART-IP or OPC

    • Wireless configuration...

  • 적용 분야

    Process optimization, Tank and silo monitoring/Inventory control, Condition monitoring of equipment. The WirelessHART gateway converts and stores wireless device data in a format that is compatible with other systems. It has Ethernet and serial...

특징 및 사양

뒤로

Details

  • 측정 원리

    WirelessHART

  • Function

    Intelligent WirelessHART gateway with Ethernet and RS-485 interfaces

  • Certification

    Non-hazardous area

    ATEX II 3G Ex nA II T4

    IECEx Ex nA nC IIC T4 Gc

    FM Cl. I, Zone 2 AEx nA nC IIC T4 Gc

    FM Cl. I, Zone 2 Ex nA nC IIC T4 Gc

  • Input

    WirelessHART communication interface

    Transmission rate: Nominal 250 kBits/s

    Operating frequency: 2.4 GHz (ISM band)

    Transmission range under reference conditions:
    Outdoor 250 m, indoor 50 m

  • Output

    Ethernet (10 BASE-T/10 BASE TX)

    - Configurable for HART IP and MODBUS TCP communication

    RS-485 serial interface

    - Configurable for HART Version 7.0 or MODBUS RTU communication

    EtherNet/IP interface

  • Auxiliary power supply / Loop power supply

    20 VDC to 30 VDC

  • Dimensions (wxhxd)

    W x H x D:

    257 mm x 85 mm x 285 mm with cable glands and antenna

    257 mm x 85 mm x 115 mm without cable glands and antenna

  • Software

    Internal software for controlling the WirelessHART network including web interface for configuration.

  • Operation

    Integral via Pushbuttons

    PC configuration:

    - Web browser via Ethernet

    - FieldCare via Ethernet (HART IP CommDTM) or RS-485 (S-MUX DTM)

  • Display

    Integral via 5 LEDs

  • Operating Voltage

    20 VDC to 30 VDC

  • Nominal current

    <5 W
