사양 정보
-
Max. measurement error
Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Mass flow (gas, Tantalum only): ±0.50 %
Density (liquid): ±0.0005 g/cm³ -
Measuring range
0 to 1000 kg/h (0 to 37 lb/min)
-
Medium temperature range
Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F) -
Max. process pressure
PN 40, Class 300, 10K, 400 bar (5800 psi)
-
Wetted materials
Measuring tube: 1.4539 (904L)
Connection: 1.4539 (904L); 1.4404 (316/316L)
적용 분야

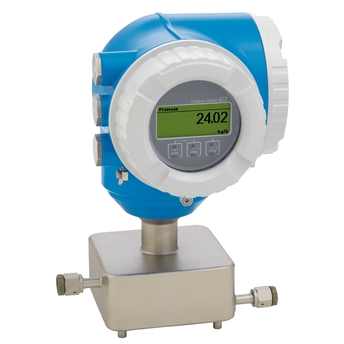

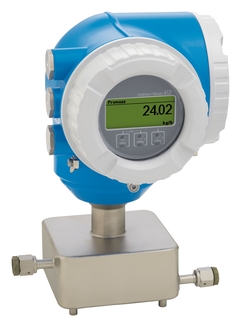

Cubemass C is the ideal sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics. Neither high pressure nor alternating flow conditions compromise its accuracy. With its compact transmitter Cubemass C 300 offers high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.
Measuring principle operates independently of physical fluid properties such as viscosity or density
Measuring accurately smallest quantities of liquids and gases
Device properties
Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄")
Process pressure up to 400 bar (5800 psi)
Medium temperature up to +205 °C (+401 °F)
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
장점
Space-saving installation – compact single-tube design
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Suitable for skids – lightweight sensor
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology
동영상
기존 제품
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
-
-
사용 설명서(BA)
Proline Cubemass C 300 FOUNDATION Fieldbus
Coriolis flowmeter
EN KO 01/06/202001/11/2016언어:
영어
버전:
01/06/2020
파일 크기:
6.6 MB
파일 이름:
BA01516DEN_0220.pdf
-
-
-
사용 설명서(BA)
Proline Cubemass C 300 Ethernet/IP
Coriolis flowmeter
EN KO 01/06/202002/10/2017언어:
영어
버전:
01/06/2020
파일 크기:
7.7 MB
파일 이름:
BA01726DEN_0220.pdf
-
-
-
사용 설명서(BA)
Proline Cubemass C 300 PROFINET
Coriolis flowmeter
EN KO 01/06/202016/09/201915/07/201902/10/2017언어:
영어
버전:
01/06/2020
파일 크기:
9.6 MB
파일 이름:
BA01737DEN_0420.pdf
-
-
-
사용 설명서(BA)
Proline Cubemass C 300 PROFIBUS PA
Coriolis flowmeter
EN KO 01/06/202001/11/201801/08/2016언어:
영어
버전:
01/06/2020
파일 크기:
6.6 MB
파일 이름:
BA01505DEN_0320.pdf
-
-
-
사용 설명서(BA)
BA Proline Cubemass C 300
Coriolis flowmeter
PROFINET with Ethernet-APLEN KO 08/01/2024언어:
영어
버전:
08/01/2024
파일 크기:
7.5 MB
파일 이름:
BA02109DEN_0122-00.pdf
-
-
-
사용 설명서(BA)
Proline Cubemass C 300 PROFIBUS DP
Coriolis flowmeter
EN KO 01/06/202001/06/2018언어:
영어
버전:
01/06/2020
파일 크기:
6.6 MB
파일 이름:
BA01856DEN_0220.pdf
-
-
-
계기 파라미터(GP)
GP Proline Cubemass 300
Coriolis flowmeter
PROFINET with Ethernet-APLEN KO 08/01/2024언어:
영어
버전:
08/01/2024
파일 크기:
2.9 MB
파일 이름:
GP01171DEN_0122-00.pdf
-
