Liquiphant FTL330L

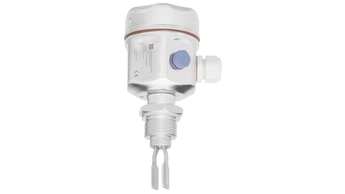

Product picture of: Liquiphant FTL330L

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
    • Order code
    • Order code 516734-2000

      Plug conn. ISO4400 DIN43650 3+PE Pg11

      Gasket + screw. Usage: FTL50/FTL50H/FTL51/FTL51H.

    • Order code 52014048

      Sealing ring DIN7603-A 33x39 FA, 5pcs.

      Process gasket. Usage: process connections G1.

    • Order code 938313-1000

      Cable 4x0.75, case 5080 FlSt

      L=5080mm. Usage: FTL50/FTL50H/FTL51/FTL51H.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5pcs.

      Material: silicone VMQ. FDA. Usage: weld-in adapter G1, adjustable, 316L (52001221), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: weld-in adapter G1, adjustable, 316L (52011898), FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H. Usage: process connection flush mounted, FTL50H/FTL51H. Usage: weld-in adapter G1, adjustable, FTL20H, FTL31/FTL33, FTL330H/FTL330L.

    • Order code 71075662

      Profile gasket 29x36x3.7, FDA, USP,5pcs.

      Material: silicone VMQ. USP Class VI, FDA. Usage: weld-in adapter G1, adjustable, 316L (52001221), FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL260, FTL330H/FTL330L. Weld-in adapter G1, adjustable, 316L 3.1 (52011898), FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL260, FTL330H/FTL330L. Weld-in adapter Rd52, adjustable, 316L (52001047). Weld-in adapter Rd52, adjustable, 316L 3.1 (52006909), FTL20H, FTL50H/FTL51H,FTL330H/FTL330L.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52001221

      Weld-in adapter G1, adjustable, 316L

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

  • 신제품
