Waterpilot FMX165

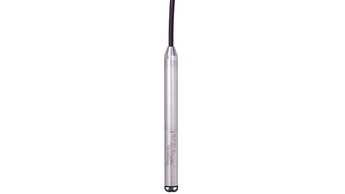

Product picture of: Waterpilot FMX165

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Hydrostatic

  • Characteristic / Application

    Pressure transmitter for hydrostatic level rope probe, capacitive flush mounted sensor with ceramic measuring diaphragm
    Sensor pipe diameter 42mm

  • Supply / Communication

    12...30V DC

  • Accuracy

    0,2%

  • Long term stability

    0,1% of URL/year

  • Ambient temperature

    0°C...70°C

  • Process temperature

    0°C...70°C

  • Process pressure absolute / max. overpressure limit

    40bar

  • Pressure measuring range

    100mbar...20bar

  • Main wetted parts

    Ceraphire ceramic
    Dichtung
    316Ti

  • Process connection

    Mounting clamp

  • Max. measurement distance

    200m H2O

  • Communication

    4 ... 20 mA

  • Certificates / Approvals

    ATEX

  • Options

    PE or FEP-cable
    changeable probe
    customer specific adjustment

  • Successor

    FMX167

  • Application limits

    Changing density
