Probfit CPA465

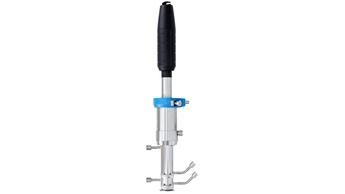

Product picture of: Probfit CPA465

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Sensor Oxygen

  • Application

    Food, pharmaceuticals, process

  • Installation

    Retractable holder

  • Characteristic

    Open and closed tank (min. DN80)

  • Design

    manual or pneumatic, can be fully automated with CPC30 / 310.- Integrated rinse chamber (Z-shape) with

  • Material

    Holder : stainless steel 1.4435 (AISI316L)Sealing : different materials available

  • Dimension

    Immersion deepth : 47 - 120mm
    (1.83inch - 4.68inch)

  • Process temperature

    max. 140°C
    (284°F)

  • Process pressure

    max. 10bar
    (145psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2" 150 lbs.

  • Additional certifications

    - 3.1.B EN 10204- EHEDG / 3A

  • 측정 원리

    Glass electrode

  • Application

    Food, pharmaceuticals, process

  • Installation

    Retractable assembly

  • Characteristic

    Open and closed tank (min. DN80)

  • Design

    - manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber (Z-shape) with connection G1/4" and G1/2".

  • Material

    Assembly: stainless steel 1.4435 (AISI316L)Sealing: different materials available

  • Dimension

    Immersion depth: 47 - 120 mm
    (1.83 inch - 4.68 inch)

  • Process temperature

    max. 140°C
    (284°F)

  • Process pressure

    max. 10 bar
    (145 psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2" 150 lbs.

  • Additional certifications

    - 3.1.B EN 10204 - EHEDG / 3A

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Food, pharmaceuticals, process

  • Installation

    Retractable holder

  • Characteristic

    Open and closed tank (min. DN80)

  • Design

    - manual or pneumatic, can be fully automated with CPC30 / 300.- Integrated rinse chamber (Z-shape) with connection G1/4" and G1/2".

  • Material

    Holder : stainless steel 1.4435 (AISI316L)Sealing : different materials available

  • Dimension

    Immersion deepth : 47 - 120mm

  • Process temperature

    max. 140°C

  • Process pressure

    max. 10bar

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2" 150 lbs.

  • Additional certifications

    - 3.1.B EN 10204- EHEDG / 3A
