Stamosens CNS70

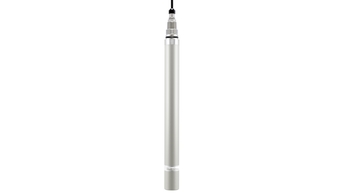

Product picture of: Stamosens CNS70

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    UV photometric

  • Characteristic

    Sensor for nitrate

  • Size

    l = 360 mm, Ø 127 mm
    l= 14.04 inch, Ø 4.95 inch

  • Design

    Sensor head Stainless steel 1.4571 (AISI 316 L)
    Sensor optical windows Quartz glass
    Sensor housing POM

  • Process temperature

    5°C ... 60°C
    41°F ... 140°F

  • Ambient temperature

    -20°C ... 60°C
    -4°F ... 140°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    in flow through armature min. 10 ml/min

  • Consistency of the sample

    depending upon type of probe clear water to max.1,5 g/l TS, activatedsludge sensor off approx.. 1,5.. 8 g/l TS

  • Specials

    with an immersion assembly with pendulum frame directly installation in basins or with flowthrough armature behind sample preparation Stam°Clean

  • Application

    Water / Waste water / Process water

  • Measurement range

    Clear water 0.2 ... 60 mg/l NO 3-N bzw. 0 ... 260 mg/l NO3
    Activated sludge 0.2 ... 30 mg/l NO3-N or 0 ... 130 mg/l NO3

  • Consumables

    No chemicals necessary
