절대압 및 게이지 압력계
Cerabar PMP51

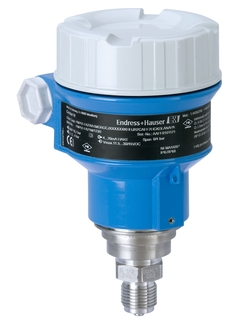

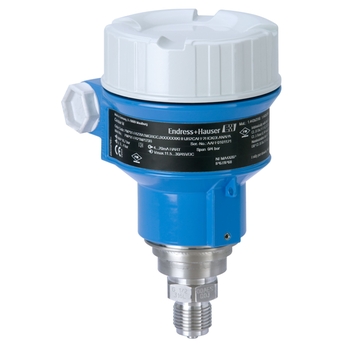

Cerabar PMP51 aluminum housing ©Endress+Hauser

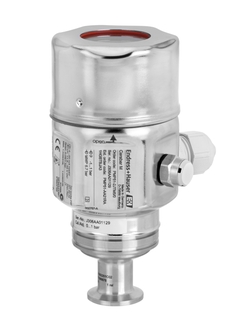

Cerabar PMP51 hygienic housing ©Endress+Hauser

Pressure measuring principle

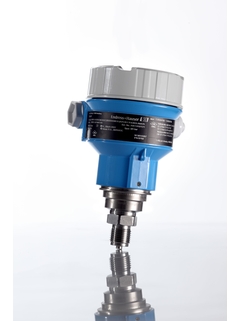

Cerabar PMP51 beauty shot ©Endress+Hauser
Cerabar PMP51 with manifolds ©Endress+Hauser

기체, 증기 또는 액체 측정을 위해 용접된 금속 센서가 장착된 디지털 압력계

금속 멤브레인이 장착된 Cerebar PMP51 디지털 압력계는 일반적으로 액체 또는 기체의 압력, 레벨, 체적 또는 질량 측정을 위해 프로세스와 위생 어플리케이션에서 사용됩니다. PMP51은 고압 어플리케이션용(최대 400bar)으로 설계되었습니다. 측정 범위를 조정할 수 있는 신속한 설정으로 시운전이 간단하고 비용과 시간을 절약할 수 있습니다. 또한 IEC 61508 및 IEC 61511에 따라 SIL2를 충족합니다.

  • 장점

    • 프로세스 온도가 변하는 상황에서도 프로세스 측정 값이 정확함

    • 소형 플러시가 장착된 프로세스 연결부로 보증된 프로세스 안전성(위생 어플리케이션에서)

    • 프로세스 압력 모니터링의 경우(최대 SIL2), IEC 61508 및 IEC 61511로 인증됨

    • 모듈식 설계로 디스플레이 또는 전자 장치를 간편하게 교체 가능

    • HART, PROFIBUS PA, FOUNDATION Fieldbus와 함께 현장 디스플레이, 4~20mA 출력을 통해 메뉴 지침에 따라 간편하게 시운전

    • ...

  • 적용 분야

    단일 챔버 알루미늄 또는 스테인리스강(316L) 하우징.

    • 프로세스 연결부: 나사, 플랜지 또는 위생 연결부

    • 프로세스 온도: -40 ~ +130°C (-40 ~ +266°F), 1시간 동안 150°C (302°F)

    • 측정 범위: -1/0 ~ +400 bar (-15/0 ~ +6,000 psi)

    • 정확성: ±0.15%, "백금" ±0.075%

    • 국제 방폭 인증, SIL, 위생 승인, 해양 승인

Details

  • 측정 원리

    Absolute and gauge pressure

  • Characteristic / Application

    Smart and reliable pressure transmitter, with piezoresistive measuring cell
    and metal welded process isolating
    diaphragm

  • Supply / Communication

    4 ..20mA HART:
    11,5...45V DC
    Ex ia: 11,5...30V DC

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Accuracy

    0,15%
    Platinum 0,075%

  • Long term stability

    < 0,1% von URL/ year

    0,2% of URL/ 5 years

    0,25% of URL/ 10 years

  • Ambient temperature

    -40°C...85°C
    (-40°F...185°F)

  • Process temperature

    -40°C...125°C
    (-40°F...275°F)

  • Process pressure absolute / max. overpressure limit

    600bar (9000psi)

  • Pressure measuring range

    1bar...400bar
    (15psi...6000psi)

  • Main wetted parts

    316L

  • Process connection

    Threads

    Flanges (DIN, ASME, JIS)

    Hygienic connections

    Tri-Clamp ISO2852

  • Max. measurement distance

    4000m (13.123ft) H2O

  • Communication

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    AD2000

  • Hygienic approvals

    3A, EHEDG

    CoC ASME-BPE

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Drinking water approvals

    NSF

  • Options

    local display

  • Application limits

    Measuring cell: Metal welded
    If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure

  • 측정 원리

    Absolute and gauge pressure

  • Characteristic

    Smart and reliable pressure transmitter, with piezoresistive measuring cell
    and metal welded process isolating
    diaphragm

  • Supply voltage

    4...20mA HART

    11,5...45V DC (Non Ex):

    Ex ia: 11,5...30V DC

    PROFIBUS PA:

    9...32 V DC (Non Ex)

    FOUNDATION Fieldbus:

    9...32 V DC (Non Ex)

  • Reference Accuracy

    Standard 0.1%

    Platinum 0.075%

  • Long term stability

    0.1% of URL/year

    0.2% of URL/ 5 years

    0.25% of URL/ 10 years

  • Process temperature

    -40°C...+130°C

    (-40°F...+266°F

    +150°C for 1h

    (+302°F for 1h)

  • Ambient temperature

    -40°C...+85°C
    (-40°F...+185°F)

  • Measuring cell

    400mbar...400bar

    (15psi...6000psi)

    relative/ absolute

  • Smallest calibratable span

    20 mbar (0.3 psi)

  • Vacuum resistance

    10 mbar (0.15 psi)

  • Max. Turn down

    20:1

  • Max. overpressure limit

    600bar (9000psi)

  • Process connection

    Thread:

    G1/2...G2, MNPT1/2...MNPT2

    Flange:

    DN25...DN80,

    ASME 1 1/2"...4",

  • Process connection hygienic

    Tri-Clamp

    DIN11851

    NEUMO

    Varivent N

    SMS

    DRD

  • Material process membrane

    316L, AlloyC,

    Tantal,

    Rhodium>Gold

  • Material gasket

    None, measuring cell welded

  • Fill fluid

    Silicone oil,

    Inert oil

  • Material housing

    Die-cast aluminum,

    AISI 316L

  • Communication

    4...20 mA

    4...20 mA HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI

  • Safety approvals

    SIL

  • Design approvals

    EN10204-3.1

    NACE MR0175

  • Hygienic approvals

    3A, EHEDG

    CoC ASME-BPE

  • Marine approvals

    GL/ ABS/ LR/ BV/ DNV

  • Drinking water approvals

    NSF

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
  • 15
  • 20
  • 21
  • 20
  • 21
  • 40
  • 30
  • 41
  • 40
  • 57
    • Nr 57 Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Nr 57 Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Nr 57 Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52002041

      Weld-in adapter DRD DN50, 316L

      Front-flush mounting of devices with DRD flange. Material: 316L. Seal: PTFE flat. FDA compliant. Usage: FMB50, FMB70, FMD78, FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMC51, PMC71, PMP51/PMP55, PMP75.

    • Order code 52011899

      Weld-in adapter DRD DN50, 316L, 3.1

      Flush mount process connection of devices with DRD flange. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: PTFE flat. FDA compliant. Usage: FMB50, FMB70, FMD78, FTL50/FTL50H/FTL51/FTL51C/FTL51H, PMC51, PMC71, PMP51/PMP55, PMP75.

    • Order code 52010172

      Weld-in adapter G1/2, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP11, PMP21, PMP51, PTP31B. Correct installation only with dummy.

    • Order code 71389241

      Weld-in adapter G1/2, 316L, A DIN 3852

      Weld-in adapter for G1/2 A DIN 3852. Material: 316L. Usage: PMP21, PMP51, PMP71.

    • Order code 71389243

      Weld-in adapter G1/2,316L, 3.1,A DIN3852

      Weld-in adapter for G1/2 A DIN 3852. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: PMP21, PMP51, PMP71.

    • Order code 52005087

      Weld-in adapter G1, 316L

      Flush mount process connection. Material: 316L. Usage: PMP23, PMP51, PMP135, PTP33B/PTP35. Correct installation only with dummy.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52024469

      Weld-in adapter G1-1/2, 316L

      Mounting process connection G1-1/2. Material: 316L. Correct installation only with dummy. Usage: FMB50/FMB51/FMB52, FMB70, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 52024470

      Weld-in adapter G1-1/2, 316L, 3.1

      Mounting process connection G1-1/2. Material: 316L. Inspection cert. EN10204-3.1 material. Usage: FMB50/FMB51/FMB52, FMB70, PMC51, PMC71, PMP51/PMP52, PMP71/PMP75.

    • Order code 71114209

      Weld-in dummy, flange DRD DN50, 65mm

      Material: brass. To avoid any deformation during welding of DRD flange 52002041/916743-0000 and 52011899.

    • Order code 52024471

      Weld-in dummy, adapter G1-1/2

      Material: brass. To avoid any deformation of the adapters 52024469 / 52024470 during welding.
