Raman 분광 측정 기술 - 최첨단 광학 분석 기술
엔드레스하우저와 함께 플랜트 안전성을 높이고제품 품질을향상시키고 운영을최적화해 보십시오. Raman 분광 측정 기술을 사용하면 실험실에서프로세스에 이르기까지샘플의 조성과분자 구조를실시간으로 측정할수 있습니다.
316L option
Metal: 316L stainless steel
Window: High-purity sapphire
C276 option
Metal: C276 alloy
Window: High-purity sapphire
Titanium option
Metal: Grade 2 titanium
Window: High-purity sapphire
Hybrid metal combination option
Metal: 316L stainless steel, C276 alloy
Window: High-purity sapphire
ATEX, CSA, IECEx

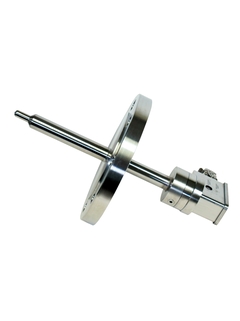

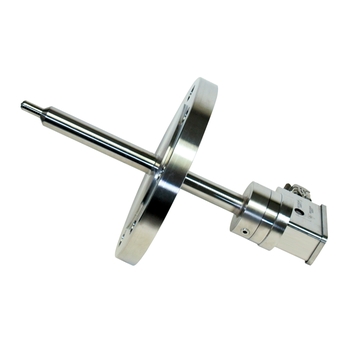

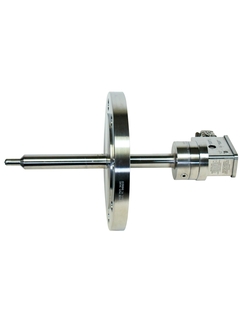

The Raman Rxn-41 probe is a rugged, process insertion probe with no sample handling system. Its single cable design streamlines installation, eliminates risk scenarios, and minimizes installation cost for long fiber runs in the process environment. The Rxn-41 probe is ideally suited for use in chemical plants and refineries to measure batch or continuous flow production. For direct measurements in cryogenic fluids, an optimized cryogenic version of the Raman Rxn-41 probe is available.
Chemical: reaction monitoring, blending, feed and final product monitoring
Polymer: polymerization reaction monitoring, polymer blending
Pharmaceutical: API reaction monitoring, crystallization, polymorph, drug substance production unit operation
Oil & Gas: fuel blending, fuel characterization
Constructed to individual site requirements
Sealed probe design
Integrated “laser on” indicator
One in/one out fiber optics
Direct insertion compatibility
Meets Category 1 pressure equipment safety standards
Suitable for hazardous area/classified environments
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
System design and specifications for the Raman Rxn-41 probe
