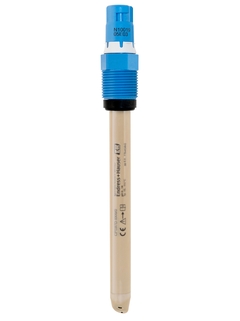

디지털 비유리 pH 센서 Memosens CPS97D
-
신제품
-
Memosens 2.0 ISFET pH sensor for polluted media in chemical processes, paper or pigment production
| FLEX 선택 |
기술적 우수성 |
단순성 |
Fundamental 선택
기본적인 측정 요구사항 충족
|
기술적 우수성
|
단순성
|
|
|
기술적 우수성
|
단순성
|
Extended 선택
혁신적인 기술로 프로세스 최적화
|
기술적 우수성
|
단순성
|
Xpert 선택
가장 까다로운 어플리케이션 요구사항 충족
|
기술적 우수성
|
단순성
|
-
Application
Chemical industry, pulp and paper, primaries and metal, mining, minerals & metals
-
Characteristic
Unbreakable
Useable in highliest clogging media, e.g. suspended solides, dispersion, precipitation reaction
Needs min. conductivity of >500µS/cm
-
Reference
Stabilized gel reference system
-
-
Material
Sensor shaft: PEEK
Sealing: FFKM
-
Dimension
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.2 and 16.7 inch)
-
Process temperature
-15 to 110 °C (5 to 230 °F)
-
Process pressure
Max. 11 bar abs. at 100 °C
(Max. 159.5 psi at 212 °F)
-
-
Connection
Inductive, digital connection head with Memosens technology
-
Ingress protection
IP 68 (10 m (33 ft) water column, 25 °C (77 °F), 45 days)
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Memoclip label Memosens sensor
-
KCL-Electrolyte solution CPY4
-
Technical buffer solution CPY20
