Digital combined pH/ORP sensor Memosens CPS16D

Memosens glass electrode for standard applications

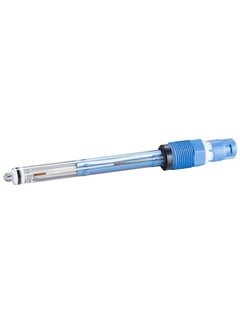

  • Memosens CPS16D - Combined pH/ORP sensor with dirt-repellent PTFE diaphragm ©Endress+Hauser

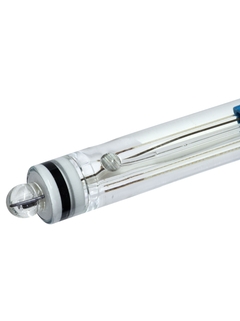

  • Memosens CPS16D - Detail view platinum element ©Endress+Hauser

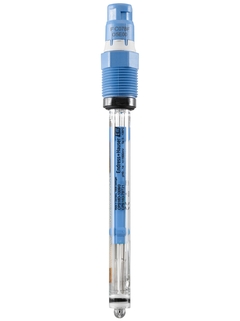

  • Memosens CPS16D for simultaneous pH/ORP measurement ©Endress+Hauser
  • The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens CPS16D is the digital all-rounder for simultaneous pH and ORP measurement offering better process control and increased quality. The sensor features a dirt-repellent PTFE diaphragm for process and environment applications with long-term stable conditions. Thanks to Memosens digital technology, CPS16D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

장점

  • Simultaneous measurement of pH, ORP and rH values (in rH mode) for a better process overview

  • Additional platinum electrode enables constant monitoring of reference impedance and thus sensor quality

  • Robust and resistant to poisoning thanks to large PTFE ring diaphragm and reference with ion trap

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi)

  • Maximum process safety through non-contact inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

적용 분야

  • Long-term monitoring or limit control in processes with stable process conditions:
    - Chemical processes
    - Pulp and paper industry
    - Power stations (e.g. flue gas cleaning)
    - Incinerator plants
    - Mining
    - Wastewater

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX and IEC approval for use in hazardous areas.
