사양 정보
-
Measurement range
0.004 to 30 mg/l
0.05 to 330 %SAT
0.1 to 700 hPa -
Process temperature
1 to 140 °C
(32 to 284 °F) -
Process pressure
0.02 to 13 bar abs
(0 to 190 psi)
적용 분야

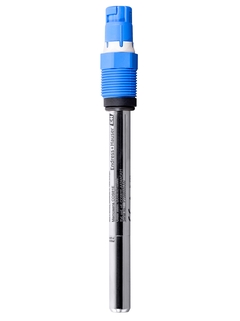

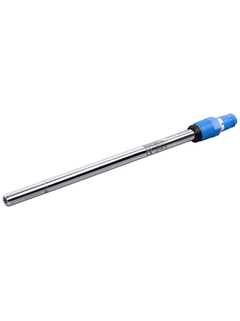

Memosens COS81E is the ideal optical oxygen sensor for hygienic applications. Its well-tuned measuring system prevents ageing of the optical spot and offers precise, long-term stable measurements for high product quality. Thanks to its approvals for hazardous and dust-explosive areas, COS81E is perfectly suited for inertization applications. With Memosens 2.0 digital technology, COS81E offers extended data storage providing the perfect basis for predictive maintenance and efficient operation.
Memosens COS81E measures oxygen in applications with high demands to sterility and hygiene such as:
Fermentation
Drinking water production
Inertization
With its international explosion protection approvals, such as ATEX and IECEx, the Memosens COS81E oxygen sensor is suitable for hazardous area use.
장점
Memosens COS81E is designed according to EHEDG and ASME BPE. It avoids cross-contamination and is fully compliant to USP class VI and FDA as well as all GMP and GLP requirements.
High process up-time: Precalibrate the sensor in your lab and then swap it into your process with plug & play. It does not need polarization time and is immediately ready to measure.
-
Reliable measurement: A built-in reference LED compensates the ageing of the measuring LED. This ensures precise measured values even after CIP/SIP and autoclaving.
Reduce your maintenance effort: Memosens COS81E does not have a difficult-to-handle electrolyte or sensitive membrane. Just exchange the sensor cap, perform a calibration and you are done.
The sensor can be used in process applications as well as benchtop fermenters. Providing you with 100% measuring consistency from the first lab trials to the final scaled-up process and your process lab.
Perfectly suited for inertization processes thanks to its approvals for hazardous and dust-explosive areas.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
동영상
FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
기술 정보(TI)
Memosens COS81E
영어 버전 - 04/2021
Hygienic optical oxygen sensor with maximum measurement stability over multiple sterilization cycles
EN KO 13/04/2021언어:
영어
버전:
13/04/2021
파일 크기:
1.6 MB
파일 이름:
TI01558CEN_0120.pdf
-
-
-
사용 설명서(BA)
Memosens COS81E
영어 버전 - 04/2021
Hygienic, optical sensor with Memosens 2.0 technology forthe measurement of oxygen
EN KO 13/04/202102/10/2020언어:
영어
버전:
13/04/2021
파일 크기:
1.9 MB
파일 이름:
BA02066CEN_0221.pdf
-
-
-
기술 정보(TI)
Memosens COS81E
Hygienic optical oxygen sensor with maximum measurement stability over
multiple sterilization cyclesEN KO 13/04/2021언어:
영어
버전:
13/04/2021
파일 크기:
1.6 MB
파일 이름:
TI01558CEN_0120.pdf
-
-
-
사용 설명서(BA)
Memosens COS81E
Hygienic, optical sensor with Memosens 2.0 technology forthe
measurement of oxygenEN KO 13/04/202102/10/2020언어:
영어
버전:
13/04/2021
파일 크기:
1.9 MB
파일 이름:
BA02066CEN_0221.pdf
-
-
-
요약 지침서(KA)
Memosens COS81E
Memosens 2.0 기술이 적용된 산소 측정용 위생 광학 센서
EN KO 12/04/202102/10/2020언어:
한국어
버전:
12/04/2021
파일 크기:
1.3 MB
파일 이름:
KA01484CKO_0221.pdf
-
-
-
설치 설명서(EA)
Kit COV81
For the maintenance of COS81D/E sensors
EN KO 14/12/2022언어:
영어
버전:
14/12/2022
파일 크기:
925.5 KB
파일 이름:
EA01460CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 05/07/2021언어:
영어
버전:
05/07/2021
파일 크기:
504.6 KB
파일 이름:
XA02475CEN_0121.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 05/07/2021언어:
영어
버전:
05/07/2021
파일 크기:
591.3 KB
파일 이름:
XA02476CEN_0121.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
IS Class I Div 1 Groups A, B, C, D
Ex ia op is IIC T6 Ga
Class I Zone 0 AEx ia op is IIC T6 Ga
IS Class II Division 1 Groups E, F, G
Ex ia op is IIIC T90 °C Da
Zone 20 AEx ia op is IIIC T90 °C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 18/02/2022언어:
영어
버전:
18/02/2022
파일 크기:
498.7 KB
파일 이름:
XA03098CEN_0122-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 05/07/202115/10/2020언어:
영어
버전:
05/07/2021
파일 크기:
1.3 MB
파일 이름:
XA02238CEN_0221.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
EAC Ex 0Ex ia IIC T6… T3 Ga
EAC Ex ia op is IIIC T90 °C…T200 °C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 11/05/2022언어:
영어
버전:
11/05/2022
파일 크기:
418.2 KB
파일 이름:
XA02839CEN_0121-00.pdf
-
-
-
Ex 안전 지침서(XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN KO 05/07/2021언어:
영어
버전:
05/07/2021
파일 크기:
488.4 KB
파일 이름:
XA02485CEN_0121.pdf
-
