Digital chlorine dioxide sensor Memosens CCS50D

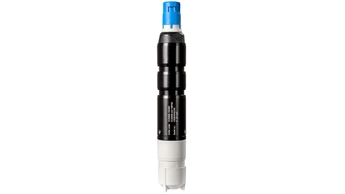

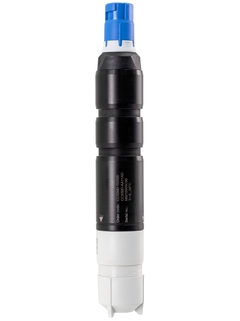

Memosens CCS50D: Digital chlorine dioxide sensor ©Endress+Hauser
Memosens CCS50D digital chlorine dioxide sensor installed in CCA151 flow assembly ©Endress+Hauser

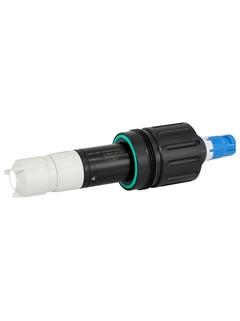

Memosens CCS50D digital chlorine dioxide sensor with adapter for installation in a CCA250 assembly ©Endress+Hauser

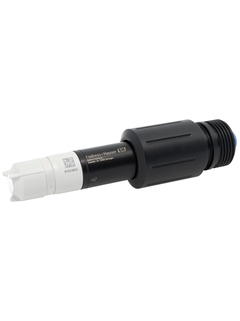

Memosens CCS50D chlorine dioxide sensor with adapter for installation in an immersion assembly ©Endress+Hauser

Memosens sensor for water, process water and utilities in all industries

Memosens CCS50D is a robust, low maintenance sensor for chlorine dioxide measurement. It provides stable and fast measured values in drinking water, process water and utilities. The sensor can be used to ensure efficient disinfection for highest water quality and safety, to avoid overdosing of chlorine dioxide or to ensure the absence of ClO2 in beverage plants and reverse osmosis. Thanks to Memosens digital technology, CCS50D combines maximum process and data integrity with simple operation.

  • 장점

    • The right sensor version for every application: From trace measurement up to chlorine dioxide concentrations of 200 mg/l.

    • Fast response time provides accurate process view and enables prompt reaction to process changes as well as efficient process control.

    • Increased process safety: precise and long-term stable measurement ensures consistent process monitoring and allows for lowest...

  • 적용 분야

    Memosens CCS50D is a chlorine dioxide sensor for skid builders and end customers. It measures reliably in:

    • Drinking water to ensure sufficient disinfection

    • Cooling systems or towers to avoid pathogen growth

    • Wash water for packed vegetables and salads to...

특징 및 사양

뒤로

Details

  • 측정 원리

    Chlorine dioxide

  • Application

    Drinking water - to ensure reliable disinfection
    Cooling water - to avoid biofilm growth
    Food - to ensure food quality
    Utilities to secure the absence/presence of chlorine dioxide

  • Characteristic

    Amperometric measurement of dissolved chlorine dioxide

  • Measurement range

    trace: 0 ... 5 mg/l ClO2
    standard: 0 ... 20 mg/l ClO2
    high: 0 ... 200 mg/l ClO2

  • Measuring principle

    - closed, membrane covered measuring cell
    - Reduction of chlordioxide (ClO2) to chloride at the cathode with appr. 120mV.

  • Design

    Closed amperometric 2-electrode measuring cell with PVDF membrane

  • Material

    Sensor shaft: PVC
    Membrane: PVDF
    Membrane cap: PVDF

  • Dimension

    Diameter: 25 mm (0.98 in)
    Length: 161 mm (6.34 in)

  • Process temperature

    +0 ...55 °C (32 ... 130°F), non-freezing

  • Process pressure

    1 bar (14.5 psi)

  • Temperature sensor

    10k NTC integrated (Memosens)

  • Connection

    Inductive, digital connection head with Memosens
