Digital ORP sensor
Orbisint CPS12D

Memosens glass electrode for standard applications

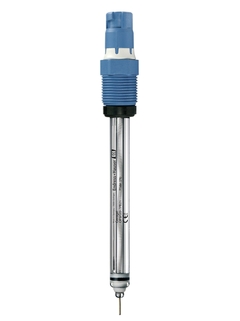

  • Orbisint CPS12D - Digital ORP glass electrode for standard applications ©Endress+Hauser

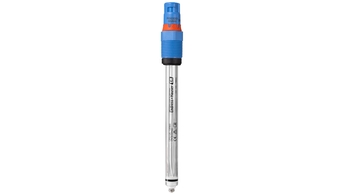

  • Orbisint CPS12D - Available with gold pin or platinum element ©Endress+Hauser
  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Orbisint CPS12D is the digital all-rounder for process and environment technology. It measures reliably and accurately even in hazardous areas. Designed for low maintenance and a long operating life, the electrode offers you best value for money. Thanks to Memosens digital technology, CPS12D combines maximum process and data integrity with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive maintenance.

장점

  • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm

  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)

  • Various measuring elements for application in oxidizing or reducing media

  • Maximum process safety through non-contact, inductive signal transmission

  • Enables predictive maintenance due to storage of sensor and process-specific data

  • Reduced operating costs thanks to minimized process downtime and extended sensor lifetime

적용 분야

  • Long-term monitoring and limit monitoring of processes with stable process conditions:
    - Chemical industry
    - Paper industry
    - Power plants (e.g. flue gas washers)
    - Incineration plants

  • Water treatment:
    - Drinking water
    - Cooling water
    - Well water

With ATEX, FM, CSA approval for use in hazardous areas.
