Vibronic
Point level detection
Liquiphant FTL51

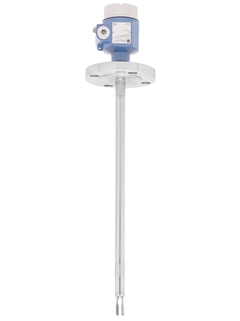

Liquiphant FTL51 ©Endress+Hauser

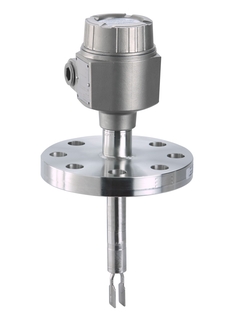

Liquiphant FTL51 ©Endress+Hauser

Vibronic measuring principle

Liquiphant with permanent function check is the safe choice for point level detection in liquids

Point level switch with extension tube for liquids in all industries

Liquiphant FTL51 is a point level switch with extension tube for use in hazardous areas with all international certificates. Useable in all industries. FTL51 offers functional safety SIL2/SIL3. With the second line of defense highest degree of safety and availability of the device can be guaranteed. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

  • 장점

    • Use in safety systems requiring functional safety to SIL2/SIL3 in accordance with
      IEC 61508/IEC 61511-1

    • International explosion protection certificates and overfill prevention certificate (WHG)

    • No calibration required, easy to start up

    • No mechanically...

  • 적용 분야

    Point level switch with extension tube for all liquids.

    • Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

    • Temperature: -50 to +150°C (-58 to +302°F)

    • Pressure: -1 to +100bar (-14.5 to +1,450psi)

    • Sensor material: 316L, Alloy

    • International explosion...

Details

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    Liquiphant M Density
    with Density Computer FML621
    Temperature and pressure measurement

    Modular housing concept

    Wide range of process connections

    Pipe extension up to 3 m (6 m option)

  • Supply / Communication

    Transmitter power supply (MUS)

  • Ambient temperature

    -50...70°C

    -50...60°C for hazardous applications

  • Process temperature

    0...80°C (validity of accuracy data)

    -50...0°C / 80...150 °C (with reduced technical data)

  • Process pressure absolute

    0...25 bar

    >25..100 bar (with reduced technical data)

  • Wetted parts

    316L/C4

  • Sensor length

    115...3000 mm

    >3000...6000 mm (Option)

  • Output

    Pulse

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Specialities

    Commissioning with ReadWin2000

  • Components

    Density Computer FML621

  • Other approvals and certificates

    SIL2/ SIL3

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    Modular housing concept
    wide range of process connections
    Analogue and bus interfaces
    Extensive certificate range (e.g. Ex,WHG)
    pipe extension up to 3m (6m option)

  • Specialities

    Foamdetection
    Detect a densitychange
    second line of defense

  • Supply / Communication

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC or 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Ambient temperature

    -50 °C...+70 °C
    (-58 °F...+158 °F)

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...100 bar

  • Min. density of medium

    0.5g/cm³(0.4g/cm³ optional)

  • Main wetted parts

    316L / Alloy

  • Process connection

    Thread:

    G3/4A, G1A, R3/4", R1, NPT3/4, NPT1

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 25A...100A

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Sensor length

    Length 130mm (5.12") (Liquiphant II)
    148mm...6000mm (5.83"...236")

  • Communication

    PROFIBUS PA
    19...253V AC
    10...55V DC-PNP
    19...253V AC bzw 10...55V DC
    8/16mA, 11...36V DC
    NAMUR
    PFM

  • Certificates / Approvals

    ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI

  • Safety approvals

    Overfill prevention WHG

    SIL2/ SIL3

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Marine approval

    GL/ ABS/ DNV

  • Options

    Heavy duty stainless steel housing mainly for the oil and gas industry

  • Components

    FTL325P/FTL375P Interface PFM
    FTL325N/FTL375N Interface NAMUR

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
  • 20
  • 12
  • 21
  • 15
  • 25
  • 30
    • Order code 52005977

      Lubricant "SYNTHESO GLEP1" (tube a 8g)

    • Order code 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

    • Order code 71040497

      Weather protection cover F13/F17/F18/F27

      Usage: FMI51/FMI52, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52.

    • Order code 71067434

      Modification name plate, non Ex

      Blank. To fill in the new order code when a non Ex instrument has been modified. Usage: FMB50/FMB51/FMB52, FMR230/FMR231, FMR240/FMR244/FMR245, FMR250,FMR530/FMR532,FTL50/FTL50H/FTL51/ FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/ FTL85, NMR81, PMC51, PMC71, PMP51/PMP55.

  • 57
    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Nr 57 Order code 52014047

      Sealing ring G1-1/2, 48x55 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.

    • Order code 52003663

      Sliding sleeve 100bar G1, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011880

      Sliding sleeve 100bar G1, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003664

      Sliding sleeve 100bar G1, AlloyC4

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.

    • Order code 52003665

      Sliding sleeve 100bar G1-1/2, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011882

      Sliding sleeve 100bar G1-1/2, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003666

      Sliding sleeve 100bar G1-1/2, AlloyC4

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.

    • Order code 52003667

      Sliding sleeve 100bar NPT1, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011881

      Sliding sleeve 100bar NPT1, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003668

      Sliding sleeve 100bar NPT1, AlloyC4

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.

    • Order code 52003669

      Sliding sleeve 100bar NPT1-1/2, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011883

      Sliding sleeve 100bar NPT1-1/2, 316L,3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003670

      Sliding sleeve 100bar NPT1-1/2, AlloyC4

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC4. Usage: FTL51, FTL71.

    • Order code 52003978

      Sliding sleeve G1, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011888

      Sliding sleeve G1, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118691

      Sliding sleeve G1, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003980

      Sliding sleeve G1-1/2, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011890

      Sliding sleeve G1-1/2, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118693

      Sliding sleeve G1-1/2, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003979

      Sliding sleeve NPT1, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011889

      Sliding sleeve NPT1, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118694

      Sliding sleeve NPT1, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003981

      Sliding sleeve NPT1-1/2, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011891

      Sliding sleeve NPT1-1/2, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118695

      Sliding sleeve NPT1-1/2, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 52001047

      Weld-in adapter RD52, 316L

      Flush mount process connection. Material: 316L. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/330L.

    • Order code 52006909

      Weld-in adapter RD52, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA compliant. Usage: FTL20H, FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL330H/FTL330L.

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52001221

      Weld-in adapter G1, adjustable, 316L

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

    • Order code 52011898

      Weld-in adapter G1, adjustable,316L, 3.1

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.

    • Order code 52014473

      O-ring 21.89x2.62 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 71086100

      O-ring 21.89x2.62 VMQ, FDA, USP, 3pcs.

      Material: silicone VMQ 70. USP Class VI. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 71140670

      O-ring 21.89x2.62 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5 pcs.

      Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.

    • Order code 71075662

      Profile gasket 29x36x3.7, FDA, USP, 5pcs

      Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
