Point level switch
Soliswitch FTE20
Rotary paddle switch

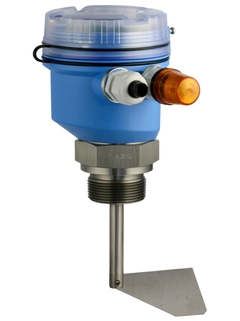

Product image paddle point level switch Soliswitch FTE20 ©Endress+Hauser

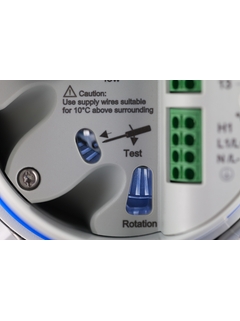

Rotation monitoring with Soliswitch FTE20 ©Endress+Hauser

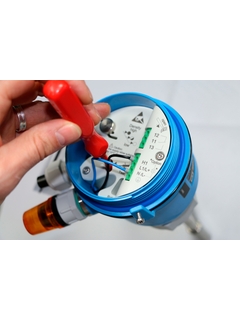

Switch test with Soliswitch FTE20 ©Endress+Hauser
  • Product image paddle point level switch Soliswitch FTE20
  • Rotation monitoring with Soliswitch FTE20
  • Switch test with Soliswitch FTE20

Simple mechanical mechanism, extremely robust and cost-effective point level switch for bulk solids

The economical Soliswitch FTE20 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized polymers make the unit outstandingly robust and therefore suitable for use in dust explosive areas according the latest standards.

빠른 선택

제안된 옵션 중에서 선택하십시오.
    -- selected coding
    -- selected label
    <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
    -- selected coding
    -- selected label
    <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FTE20
세부 정보 표시 세부 정보 숨기기
세부 정보 표시
빠른 선택으로 돌아가기
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 선택적 추가 항목
계속하려면 개별 사양 구성 을 사용하십시오.
또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

추가 구성 요소

  • 장점

    • Safety comes first - Overfill prevention with an automatic rotation monitoring system

    • Optical rotation control for a fast and easy check either for installation or for trouble shooting

    • Extremely robust polymer housing with the latest dust Ex certification...

  • 적용 분야

    • Process connections: NPT 1½", PBT; NPT 1¼", PBT; G 1½", PBT; NPT 1½", 1.4305; NPT 1¼", 1.4305; G 1½", 1.4305

    • Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2000 mm (80") (can be shortened)

    • ...

특징 및 사양

뒤로

Details

  • 측정 원리

    Paddle

  • Characteristic / Application

    universally applicable as a full, empty and demand alarm on silos containing solids

  • Specialities

    Rotation Monitoring System

    Fold-away paddle

  • Supply / Communication

    230 VAC 50/60 Hz

    115 VAC 50/60 Hz

    24 VAC 50/60 Hz

    20 bis 28 VDC

  • Ambient temperature

    -20 °C ... 60 °C (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 80 °C (-4 °F ... 170 °F)

  • Process pressure absolute / max. overpressure limit

    0.5 bar to 1.5 bar (7 psi ... 22 psi)

  • Min. density of medium

    >= 80 g/l

  • Main wetted parts

    1.4305

  • Max. tensile strength

    Rope version >1500N

  • Process connection

    NPT 1 1/2", PBT

    NPT 1 1/4", PBT

    G 1 1/2", PBT

    NPT 1 1/2", 1.4305

    NPT 1 1/4", 1.4305

    G 1 1/2", 1.4305

  • Sensor length

    75 mm (3")

    100 mm (4")

    120 mm (4 3/4")

    200 mm (8")

    300 mm (12")

    Rope length of approx 2000 mm (80"), can be shortened

  • Communication

    Micro switch with changeover contact max. 10 A/250 VAC

  • Certificates / Approvals

    ATEX

    FM

    IEC Ex

  • Options

    Rotation Monitoring System

    Signal Lamp

    Fold-away paddle

    Weather protection cover

  • Components

    HAW569 Surge arrester
