TW11
Protection tube for temperature sensors

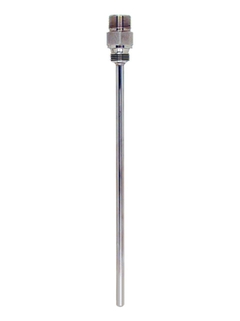

TW11 ©Endress+Hauser

Designed for use in the fine chemicals industry and generally for almost all industrial processes

This protection tube is an important component for temperature measurement points for almost all industrial processes, especially for fine chemicals industries. It is used to protect the measuring insert or sensor elements from aggressive process media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Tip of the thermowell with a reduced diameter or tapered for a faster response time

    • Customized immersion length

    • Surface finishing Ra < 0.8 μm

    • SS 316L/1.4404 and SS 316Ti/1.4571 for the "wetted" parts

    • The common threaded process connections are supplied as...

  • 적용 분야

    TW11 protection tubes are designed for the use in the fine chemicals industry but can also be used for generic applications.

특징 및 사양

뒤로

Details

  • 측정 원리

    Fabricated Thermowell

  • Characteristic / Application

    metric style

    DIN 43772 Form 2/3

    threaded process connection

    without neck

  • Head connection

    external thread:

    M24 x 1.5

    1/2" NPT

  • Maximum standard immersion length

    4.000 mm (157,48")

  • Max. immersion length on request

    10.000 mm (393,7")

  • Process connection

    thread:

    G3/8"

    G1/2"

    G3/4"

    1/2" NPT

    3/4" NPT

    R1/2"

    R3/4"

    R1"

    M20 x 1.5

  • Thermowell root diameter

    9 mm (0,35")

    11 mm (0,43")

    12 mm (0,47")

    14 mm (0,55")

    15 mm (0,59")

  • Medium contact material

    1.4401 (316)

    1.4404 (316L)

    1.4571 (316Ti)

  • Wetted part finishing (Ra)

    < 0.8 ìm (31.50 ìin)

  • Tip shape

    straight

    reduced

    tapered

  • Temperature range

    -200...700 °C (-328...1.292 °F)

  • Max. process pressure (static)

    50 bar (725 psi)

  • Max. process pressure at 400 °C

    depends on process connection
