TLSC2

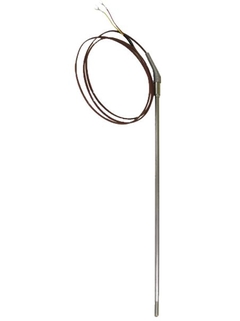

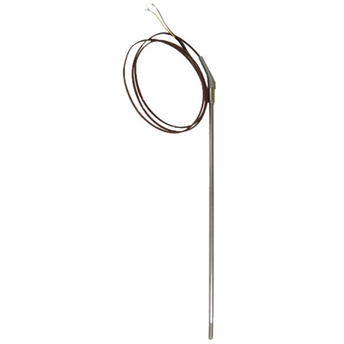

South African style thermocouple sensor, cable probe

TLSC2
South African style thermocouple sensor, cable probe ©Endress+Hauser

Appropriate for applications with high process temperatures

Easy installation - with adjustable compression fitting or without process connection - various diameter inserts and customized immersion lengths lead to a high flexibility. Suitable for use in the ferrochrome industry.

이 제품은 해당 국가에서 판매되지 않는 제품입니다.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Various types of thermocouples: Type J (Fe-CuNi), type K (NiCr-Ni), type N (NiCrSi-NiSi) or type T (Cu-CuNi)

    • Sheath material ANSI 316SS or 310SS, INCONEL 600

    • Customized immersion length

  • 적용 분야

    The thermometer comprises of various diameter fixed inserts with either flexible tails, a quick disconnect plug or a combination of the two.

    To be installed into a thermowell or directly into the process. They can also be used in all applications where...

특징 및 사양

뒤로

Details

  • 측정 원리

    Thermocouple

  • Characteristic / Application

    S.A. Style

    universal range of application

    usable with or without a thermowell

  • Thermowell / protection tube

    to use with or without thermowell (can be ordered separately)

  • Insert / probe

    mineral insulated (MI), flexible

  • Max. immersion length on request

    up to 90.000 mm (3.543,31'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4841 (310)

    Alloy 600 (2.4816)

  • Optional coating

    Not defined

  • Process connection

    Adjustable compression fitting:

    NPT 1/8"

    NPT 1/4"

    NPT 3/8"

    NPT 1/2"

    G1/2"

  • Tip shape

    straight

  • Operating temperature range

    Type J:

    -210 ...760 °C

    (-346 ...1.400 °F)

    Type K:

    -270 ...1.100 °C

    (-454 ...2.012 °F)

    Type N:

    -270 ...1.100 °C

    (-454 ...2.012 °F)

    Type T:

    -270 ...400 °C

    (-454 ...725 °F)

  • Max. process pressure (static)

    at 20 °C: 10 bar (150 psi) without thermowell

  • Accuracy

    class 1 acc. to IEC 60584

  • Response time

    depending on configuration

  • Integration head transmitter

    no

  • Certification

    EN10204 3.1 Material traceability
