iTEMP TMT180
Temperature head transmitter

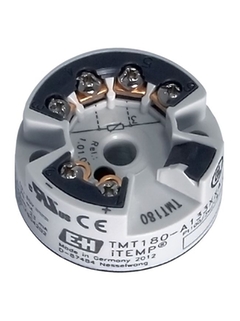

iTEMP TMT180
Temperature head transmitter ©Endress+Hauser

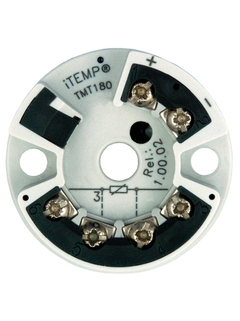

iTEMP TMT180
Temperature head transmitter ©Endress+Hauser

Transformation of the sensor signal into a stable and standardized output signal for all industries

The transmitter is designed for the transformation of an RTD Pt100 sensor signal. Various measurement ranges are configurable. The standardized output signal used for process measurement is a 4 to 20 mA signal. This means a fast, easy and cost-saving temperature measuring as well as reliable and precise measured values for for a wide range of non-ex industry applications.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • High accuracy in total ambient temperature range

    • Fault signal on sensor break or short circuit, presettable to NAMUR NE 43

    • EMC according to NAMUR NE 21, CE

    • Online configuration during measurement using SETUP connector

    • Customer specific measurement range...

  • 적용 분야

    • PC programmable (PCP) temperature head transmitter for converting a Pt100 input signal into a scalable 4 to 20 mA analog output signal

    • Input: Resistance thermometer (RTD) Pt100

    • Online configuration using PC with configuration kit and PC software

특징 및 사양

뒤로

Details

  • 측정 원리

    Head transmitter

  • Input

    1 x Pt100

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    10...35 V DC

  • Communication

    PCP (pc-programmable)

  • Installation

    Terminal head form B

  • Accuracy

    Pt100, -200...650 °C (-328...1.202 °F) <= 0.2K / 0.08% span

    Pt100, -50...250 °C (-58...482 °F) <= 0.1 K /0.08% span

    Pt100, -50...250 °C (-58...482 °F) <= 0.2 K /0.08% span

  • Galvanic isolation

    no

  • Certification

    Marine approval

    UL according to 3111-1

    UL EX NI, IS

    GOST Metrology

    CSA General Purpose

    FM NI, Class I, Div. 2, Group ABCD

    CSA NI, Class I, Div.2, Group ABCD

    FM/CSA NI, Class I, Div. 2, Group ABCD

    GL (German Lloyd)
