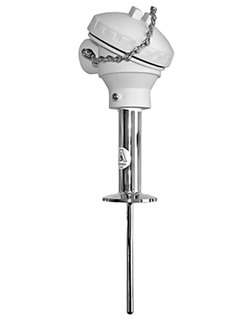

TH17
Modular, hygienic RTD thermometer, US style

TH17
Modular, hygienic RTD thermometer, US style ©Endress+Hauser

Designed for use in hygienic and aseptic applications in Food&Beverages and Life Sciences industries

Typical processes in the food & pharmaceutical industry demand special functions such as fast response times and high accuracy of temperature measurement. With a straight or reduced tip form and a combined insert with the neck tube, it is possible to realize best thermal response times. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability.

  • 장점

    • Meets 3-A sanitary standards

    • Meets PMO requirements by US FDA for dairies

    • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point...

  • 적용 분야

    The TH17 sanitary temperature sensors are RTD's designed for use in dairy, food & beverage, pharmaceutical and bio-technology plants.

    • Temperature dryers in food processes

    • Pasteurization

    • Heat exchangers

    • Material storage tanks

    • Cheese vats

    • Brewhouse / cellar

    • Cookers / freezers

    • Dehydrator

    • ...

특징 및 사양

뒤로

Details

  • 측정 원리

    Resistance Temperature Detector

  • Characteristic / Application

    US style

    modular temperature assembly

    hygienic design

    hygienic process connection

    with extension

  • Terminal head

    TA20J - SS - deep-drawn w. or w/o. display

    TMT162 - SS casting - fieldhousing w. or w/o. display

    TU401 - Alu - screwed cover w. chain

    PP plastic - screwed cover w. chain - FDA listed material

    TMT162/T17 - 316L - hygienic field housing

  • Thermowell / protection tube

    without (not intended to be used with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

    PTFE-insulated, rigid

  • Outer diameter protection tube / Insert

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • Max. immersion length on request

    up to 4.877 mm (192,00'')

  • Material protection tube/ thermowell

    1.4404 (316L)

  • Process connection

    hygienic:

    clamp connections TRI-Clamp / Micro-Clamp

  • Tip shape

    straight

    reduced

  • Surface roughness Ra

    0,8 μm (32 μin.)

  • Operating temperature range

    PT 100:

    -200 °C ... 200 °C

    (-328 °F ... 392 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1.450 psi)

  • Accuracy

    class A acc. to IEC 60751

    class 1/5 DIN

  • Response time

    63% rt = 4 s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    FM IS

    CSA IS

    FM/CSA IS

    CSA

  • Certification

    FDA

    3A

    SIL (transmitter only)
