Liquiphant S FDL60

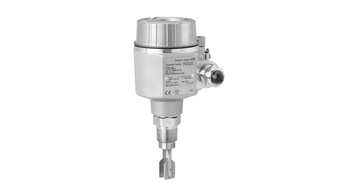

Product picture of: Liquiphant S FDL60

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    SIL 3 acc. to IEC61508 / AK5 DIN V 19250
    Redundant accord. VdTÜV in one device
    Permanent self function control
    Anual test may be waived

  • Specialities

    Permanent self monitored
    Redundant measuring system
    Selftest by pressing a button

  • Supply / Communication

    PFM

  • Ambient temperature

    -25 °C ... 70 °C
    (-13 °F ... 158 °F)

  • Process temperature

    -40 °C ... 150 °C
    (-40 °F ... 302 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 40 bar
    (Vacuum ... 580 psi)

  • Main wetted parts

    316Ti, Alloy

  • Process connection

    G1A, NPT1,DIN DN25 ... DN100, ASME 1" ... 6",JIS RF 10 K 50 316Ti / Alloy

  • Process connection hygienic

    Tri-Clamp ISO2852

  • Sensor length

    130mm (5.12")

  • Communication

    PFM Nivotester FTL670

  • Certificates / Approvals

    ATEX
    VdTÜV100 (Liquid gases)
    WHG/ Overfill prevention
    SIL
    GL Marine
    EHEDG, 3A

  • Components

    FTL670, Fail-safe level switch interface

  • Successor

    Liquiphant FTL80
