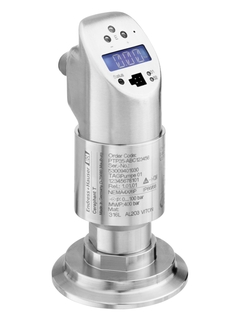

Ceraphant T PTP35

Ceraphant PTP35 - Absolute and gauge pressure

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

측정 원리

Pressure switch
Characteristic

Intelligent pressure switch with metal diaphragm, for hygienic applications, longterm stable, FDA concurring
Supply voltage

12...30VDC
Reference Accuracy

0,5%
Long term stability

0,15% of URL/year
Process temperature

-40°C...100°C
(-40°F...212°F)
135°C for 1h
(275°F for 1h)
Ambient temperature

-40°C...85°C
(-40°F...185°F)
Measuring cell

1bar...40bar
(15psi...600psi)
Max. overpressure limit

160bar (2320psi)
Process connection

Hygienic connections
Threads
Communication

1x PNP switch
2x PNP switch
1x PNP switch + 4...20mA analogue
Design approvals

EN10204-3.1
Hygienic approvals

3A
Specialities

Digital display
Robust SS-housing with Ra < 0,8 micron
Successor

PTP33B

자세히 보기
간단히 보기

문서 / 매뉴얼 / 소프트웨어

다운로드 유형

필터

Weld-in adapter, process adapter and flanges
Level and pressure measurement

Technical Information (TI)
Ceraphant T PTC31, PTP31, PTP35
Pressure switch for safe measurement and monitoring of absolute and
gauge pressures

Technical Information (TI)
ReadWin® Quick Setup
Operating Manual
ReadWin® Quick Setup Temperature
PC Software

Operating Instruction (BA)
Ceraphant T, PTC31, PTP31, PTP35
Pressure switch forsafe measurement and monitoring of absolut and
gauge pressures

Short Instruction (KA)

10/15

영어
Certificate of Compliance Cerabar T PMP135, Cerabar PMP23, Ceraphant PTP33B, PTP35
PE 50833 (EHEDG)

Certificate (ZE)
Weld-in adapter G1, G3/4 Special Documentation
Weld-in adapter G1, G3/4

Special Documentation (SD)
压力测量
用于过程压力、差压、液位和流量测量的专业仪表

Fields of Activities (FA)

09/15

중국어
Basınç Ölçümü
Proses basıncı, fark basınç, seviye ve akış için güçlü enstrümanlar

Fields of Activities (FA)

05/15

터키어
Mesure de pression
Appareils de mesure pour la pression de process, la pression
différentielle, le niveau et le débit

Fields of Activities (FA)

03/17

fr
Druckmesstechnik
Leistungsfähige Messgeräte für Prozessdruck, Differenzdruck, Füllstand
und Durchfluss

Fields of Activities (FA)

03/17

독일어
Catálogo Medición de Presión
Instrumentos para la medición de presión, presión diferencial, nivel y
caudal de proceso

Fields of Activities (FA)

03/17

스페인어
Pressure measurement
Powerful instruments for process pressure, differential pressure, level
and flow

Fields of Activities (FA)

03/17

영어
Pressure measurement
American version: Powerful instruments for process pressure,
differential pressure, level
and flow

Fields of Activities (FA)

03/17

영어
Misura della pressione
Potenti strumenti per la misura della pressione di processo, pressione
differenziale,
livello e portata

Fields of Activities (FA)

03/17

이탈리아어
Pomiar ciśnienia
Potężna aparatura do pomiaru
ciśnienia procesowego, różnicy
ciśnień, poziomu i przepływu

Fields of Activities (FA)

03/14

폴란드어
Die Lebensmittelindustrie im Fokus
Geräteinnovationen

Competence Brochure (CP)

08/15

독일어
Komplettpaket Druckmesstechnik
Ein Ansprechpartner - spart Zeit und reduziert Kosten

Competence Brochure (CP)

05/15

독일어
Catálogo soluciones esenciales
Alta calidad a precios competitivos

Competence Brochure (CP)

01/17

스페인어
CS070Ade_Tanklagermonitoring
Um die optimale Kapazitätsausnutzung der 35Mio. Liter Tankkapazitäten
(Cuvée-, Süßreserve-, Fülltanks) auch unter Qualitätsgesichtspunkten zu
gewährleisten, wurde im Rahmen einer Erweiterung das Tanklager
automatisiert.

Case Studies (CS)

01/10

독일어
E-direct Produktcatalogus 2018-2019
High quality, low price

Endress+Hauser Catalogues (EC)

10/18

네덜란드어
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !

Endress+Hauser Catalogues (EC)

09/19

fr
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!

Endress+Hauser Catalogues (EC)

09/19

독일어
Ceraphant T
Product Code: PTP35-
Declaration Number: HE_00575_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

중국어
Ceraphant T
Product Code: PTP35-
Declaration Number: HE_00573_01.17
Manufacturer Specification: RoHS

Manufacturer Declaration

중국어
Ceraphant, Ceraphant T
Product Code: PTP33B-, PTP35-
Declaration Number: HE_00177_01.15
Manufacturer Specification: Food hygiene, 10/2011, 1935/2004

Manufacturer Declaration

독일어 , 영어
Cerabar M, Cerabar T, Ceraphant T
Product Code: PMP135-, PMP51-, PTP35-
Declaration Number: FDA_00059_01.15

FDA Declaration

독일어 , 영어
Ceraphant T
Product Code: PTC31-, PTP31-, PTP35-

EU Declaration

독일어 , 영어 , fr
Waterpilot, Deltabar S, Cerabar S, Cerabar M, Deltapilot S, Deltabar M, Deltapilot M, Deltabar, Ceraphant T, Ceraphant, Cerabar T, Cerabar
Product Code: PTP35-, FMD78-, PMP71-, PMD75-, FMD77-, PMD70-, PMP75-, PMP51-, PMP55-, PMC71-, FMD76-, FMB53-, FMB70-, PMC51-, PMD55-, FMB50-, FMD72-, FMX21-, PTP33B-, PTP31-, PTC31-, PMP23-, PMP135-, PMP11-, PMC131-, FMX167-, FMD71-
Approval Agency: TÜV

Pressure Equipment

독일어 , 영어
Ceraphant T
Product Code: PTC31-, PTP31-, PTP35-
Region/Country: Russia
Approval Agency: Rosstandart
Approval Number: DE.C.30.004.A_27746

Metrology

러시아어
Cerabar, Cerabar T, Ceraphant, Ceraphant T
Product Code: PMP135-, PMP23-, PTP33B-, PTP35-
Region/Country: Europe
Approval Agency: TNO

Food Safety

영어

자세히 보기
간단히 보기

액세서리 / 예비 부품

검색

필터

Order code

Specification

- Order code 52024267

  EPDM O-rings process adapter M24

  5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35. process adapter M24.

  자세한 정보 표시 자세한 정보 숨기기
- Order code

  Unit is not repairable.

  자세한 정보 표시 자세한 정보 숨기기

자세히 보기
간단히 보기

기존 제품
- PTC531
- PTC532

신제품

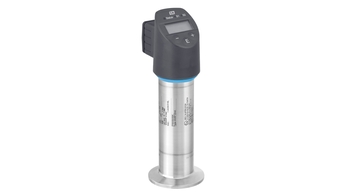

- Ceraphant PTP33B

  Ceraphant PTP33B is a cost-effective pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure.
