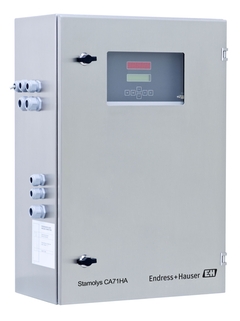

Stamolys CA71HA

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Colorimetric

  • Characteristic

    Compact photometric analysis system for total hardness measurement.

  • Size

    648 x 436 x 250 mm
    25.27 x 17.00 x 9.75inch

  • Design

    GRP, Stainless steel or open frame

  • Process temperature

    10°C ... 30°C
    50 ... 86°F

  • Ambient temperature

    5°C ... 40°C
    41 ... 104°F

  • Process pressure

    pressureless < 0,2 bar
    3psi

  • Sample flow rate

    Sample flow rate : min. 5 ml/min
    min. Volume/measurement : 20ml

  • Consistency of the sample

    low solid content(TS<50mg/l)
    >pH3 (not buffered)

  • Specials

    at any time adaptable at suburb/customer conditions, two-channelversion available, sample fertilization without further pump possible

  • Application

    Potable Water / Processwater

  • Power supply

    115 V AC / 230 V AC, 50/60 Hz

  • Output

    0/4 - 20mA; RS232
    Contacts: 2 limit contacts (per channel), 1 system alarm contact

  • Input

    Mesuared variable : CaCO3 (mg/l; °fH; °dH; mmol/l; ppm)

  • Measurement range

    0,1 ... 10 mg/l CaCO3
    0,8 ... 80 mg/l CaCO3

  • Consumables

    - Reagents necessary - Servicing requirement : 15min/week (typical) - Maintenance intervall : 6 month (typical)
