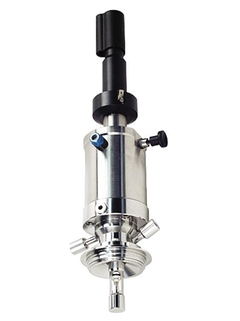

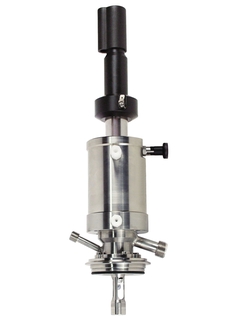

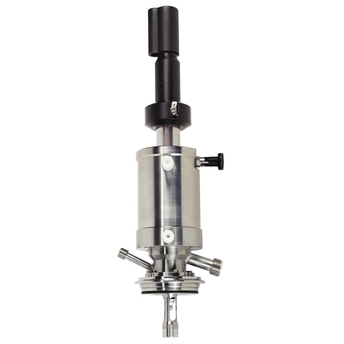

Cleanfit H CPA475

이 제품은 더 이상 제공되지 않습니다.

구모델 / 신모델 섹션에서 신모델을 확인하거나 Endress+Hauser로 문의하시기 바랍니다.

특징 및 사양

뒤로

Details

  • 측정 원리

    Sensor Oxygen

  • Application

    Food, pharmaceuticals, process

  • Characteristic

    - Retractable holder- Open and closed tank, piping (min. DN80)

  • Design

    - hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".

  • Material

    Holder : stainless steel 1.4435Sealing : different materials (FDA) available.

  • Dimension

    Immersion depth : 48 - 102mm
    (1.87inch -3.97inch)

  • Process temperature

    max. 80 or 140°C
    (176°F or 284°F)

  • Process pressure

    max. 4/6 or 10bar
    (58psi/87psi or 145psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs

  • Additional certifications

    - 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

  • 측정 원리

    Sensor ORP / Redox

  • Application

    Food, pharmaceuticals, process

  • Installation

    Retractable holder

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".

  • Material

    Holder : stainless steel 1.4435Sealing : different materials (FDA) available.

  • Dimension

    Immersion deepth : 48 - 102mm

  • Process temperature

    max. 80 bzw. 140°C

  • Process pressure

    max. 4/6 bzw. 10bar

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs

  • Additional certifications

    - 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

  • 측정 원리

    Glass electrode

  • Application

    Food, pharmaceuticals, process

  • Installation

    Retractable assembly

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - hygienic style - manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".

  • Material

    Holder: stainless steel 1.4435Sealing : different materials (FDA) available.

  • Dimension

    Immersion depth: 48 - 102mm
    (1.87 inch -3.97 inch)

  • Process temperature

    max. 80 or 140°C
    (176°F or 284°F)

  • Process pressure

    max. 4/6 or 10 bar
    (58 psi/87 psi or 145 psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, process connection DN50/PN10, process connection ASME 2"/150 lbs

  • Additional certifications

    - 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability + cleanability)
