Rugged Memosens pH electrode for lab measurements and spot sampling in harsh environment

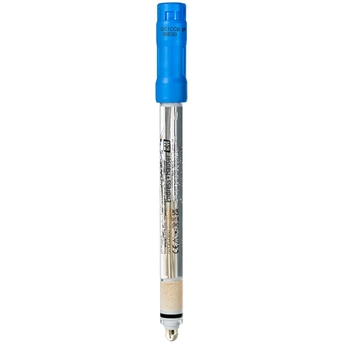

Digital pH sensor Memosens CPL59E

Rugged Memosens 2.0 pH sensor for laboratory measurements and random sampling in demanding media

CPL59E
가격 로드 중
일시적으로 가격을 로드할 수 없습니다.
Price on request
가격 활성화 중
가격: 정보 제공

이 상품은 해당 지역에서 이용할 수 없습니다

추가 질문이 있으시면 Endress+Hauser 영업 파트너에게 문의하십시오.

Rugged pH electrode with Memosens 2.0 technology for lab measurement and random sampling ©Endress+Hauser
Memosens technology

사양 정보

  • Measuring range

    pH 0 to 14

  • Process temperature

    0 to 135 °C (32 to 275 °F) (0 to 100 °C (32 to 212 °F) application range)

  • Process pressure

    1 bar, not intended for continues measurement in process

적용 분야

The Memosens CPL59E starts to perform best, when other sensors cannot handle the conditions. The pH electode is suited for harsh conditions as e.g. in chemical and process industries. Due to the ion trap it offers a high stability to oxidizing agents. This protects the sensor and the junction from drift and inaccurate measurement.

Memosens CPL59E is suited for:​

  • Check of on-line measuring loops

  • Analysis of grab samples (on-site as well as in the laboratory)

  • Measurement at process points where regular checks are recommended​

In the following applications: ​

  • pH value setting in the media

  • Process water of chemical industry​

  • Neutralization​

  • Mixture monitoring​

장점

  • The ion trap provides excellent performance and long-term stability even in harsh environments such as oxidizing agents

  • Large dirt-repellent PTFE-junction to avoid clogging

  • Innovative Memosens 2.0 technology: true plug and play and optimal traceability

  • Automatic registration and temperature compensation with the integrated temperature sensor

  • Tamper-proof data storage including serial number and calibration history for required quality management

  • Memosens technology
    Memosens 2.0: Cutting-edge sensor technology reloaded

    Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.

성공 사례

  • Dow plant in Stade, Germany Dow plant in Stade, Germany

    Automated pH measuring point in wastewater

    The Dow plant in Stade relies on Endress+Hauser solutions for pH monitoring in the treatment of production wastewater.

  • Minera Valle Central in Chile performs online interface measurement and turbidity monitoring Minera Valle Central in Chile performs online interface measurement and turbidity monitoring

    Improved thickener operation at Minera Valle Central

    The measurement of interface in thickeners is done manually, while the turbidity measurement is done by obtaining samples sent to the laboratory. With Endress+Hauser there is an automated solution.

  • real-time monitoring of critical parameters in fermentation processes real-time monitoring of critical parameters in fermentation processes

    Advanced bioprocess control

    From time consuming sample analysis to real-time monitoring of critical parameters in fermentation processes thanks to complete solutions from hardware to development and analytical services.

  • Company site of Meta Nikel Kobalt in Türkiye Company site of Meta Nikel Kobalt in Türkiye

    The future of mining

    Automatic cleaning, calibration, and monitoring of Memosens pH sensors with the CDC90 for efficient operations in mining applications.

  • Butoniga Reservoir Croatia Butoniga Reservoir Croatia

    How Istria is quenching its thirst

    Endress+Hauser enables fast and reliable water analysis at Butoniga Reservoir, ensuring optimal layer selection, improved water quality and reduced operating costs.
