Tank gauging instrument
Float Gauge LT5

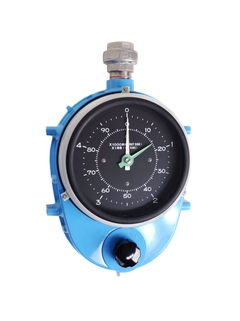

Float Gauge LT5 ©Endress+Hauser

Mechanical tank gauge for accurate and reliable level measurement

Float Gauge LT5 has been developed for all areas of industry. Many years of operation in a wide variety of applications have proven its reliability.

빠른 선택

제안된 옵션 중에서 선택하십시오.
    -- selected coding
    -- selected label
    <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
    -- selected coding
    -- selected label
    <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

LT5
세부 정보 표시 세부 정보 숨기기
세부 정보 표시
빠른 선택으로 돌아가기
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 선택적 추가 항목
계속하려면 개별 사양 구성 을 사용하십시오.
또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.

  • 장점

    • No electrical power is required to perform the measurement

    • Built-in repeatability check

    • Direct reading at the tank side allows you to check the level indication easily

    • Can be installed on a variety of tanks including fixed roof, floating roof, covered...

  • 적용 분야

    Level indication of petroleum products such as crude oil, kerosene, light and heavy oil, vegetable oil, palm oil, seed oil and animal oil, highly viscous liquid such as asphalt, certain chemicals (corrosive/toxic vapor can be sealed using a liquid seal...

특징 및 사양

뒤로

Details

  • 측정 원리

    Servo / Float Tank Gauging

  • Characteristic / Application

    Mechanical Tank Gauge for accurate and reliable Level Measurement

  • Specialities

    Mechanical display

  • Accuracy

    up to ±2mm (+/- 0.08")

  • Ambient temperature

    -20 °C ... +70 °C

    (-4 °F ... +158 °F)

  • Process temperature

    -200 °C ... 200 °C

    (-328 °F ... 392 °F)

  • Process pressure absolute / max. overpressure limit

    1bar abs...24.5 bar abs

    15 psi...355.25 psi

  • Main wetted parts

    SUS316, PVC

  • Process connection

    Thread: 1", 1 1/2"

    Flange: 40A,

  • Max. measurement distance

    30m (98ft)

  • Design approvals

    EN 10204-3.1

  • Application limits

    Measuring liquid density: 0.5 - 2.0 g/cm3

문서 / 매뉴얼 / 소프트웨어

  • Float Gauge LT5-Technical Information

    The Float Tank Gauge LT5-1 perform an important role in all areas of
    industry. Many years of operation in wide variety of applications have
    proven their reliability. No electrical power is required to perform the
    measurement. In addition, LT series can be installed easily in your site
    and can measure the liquid level accurately, and can be used for the
    detector of the remote command. Therefore LT series are best suited for
    use in the following operations.
    • Management of Inventory
    • Batch Process
    • Management of Process Tank
    • Safety Drive of Tanks

    Technical Information (TI)
  • Float Level Gauge LT5 - Operating Instruction

    The Float Tank Gauge LT5-1 perform an important role in all areas of
    industry. Many years of operation in wide variety of applications have
    proven their reliability. No electrical power is required to perform the
    measurement. In addition, LT series can be installed easily in your site
    and can measure the liquid level accurately, and can be used for the
    detector of the remote command. Therefore LT series are best suited for
    use in the following operations.
    • Management of Inventory
    • Batch Process
    • Management of Process Tank
    • Safety Drive of Tanks

    Operating Instruction (BA)

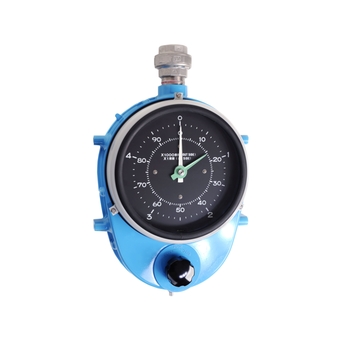

  • Picture - Float Gauge LT5

    Tank Gauge

    03/14
    Language neutral
