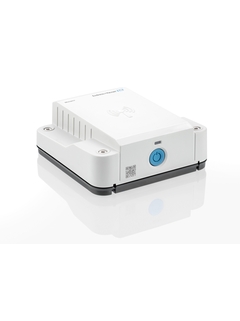

Micropilot FWR30 - The cloud connected radar level sensor

Micropliot FWR30- smart level transmitter ©Endress+Hauser
Micropliot FWR30- smart level transmitter ©Endress+Hauser
Micropliot FWR30- smart level transmitter ©Endress+Hauser
Micropliot FWR30- smart level transmitter ©Endress+Hauser

From smart level monitoring to supply chain management

Continuous simplicity from scratch. Our IIoT radar is a smart level transmitter with high-end technology in a cost-effective sensor. Together with the digital services Netilion Value, Netilion Inventory or SupplyCare Hosting, the wireless and battery powered level sensor, ensures reliable and remote level monitoring. The secure and certified solution provides access to information on asset and inventory status from everywhere at any time.

이 제품은 해당 국가에서 판매되지 않는 제품입니다.

빠른 선택

제안된 옵션 중에서 선택하십시오.
  • <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
  • <%message%>

또는

개별 구성

가능한 모든 옵션에서 선택을 계속하십시오.
  • 장점

    • Full transparency in storage and transportation of liquids

    • Simplified solution from procurement to operations

    • Secure data transmission combined with a flexible, digital service portfolio

    • Information access from everywhere at any time

  • 적용 분야

    • Level measurement and tracking of mobile plastic tanks like IBCs

    • Level measurement and inventory management of plastic tanks which are not located on a plant (different stations)

    • Level measurement and inventory management of mobile and stationary...

특징 및 사양

뒤로

Details

  • 측정 원리

    Level radar

  • Characteristic / Application

    - Applications in all industries

    - Mobile and stationary plastic tanks (IBC tanks, storage tanks)

  • Specialities

    Comissioning and operation via digital services like "Netilion Value" or "SupplyCare Hosting"

  • Supply / Communication

    Wireless

    Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)

  • Frequency

    80 GHz

  • Accuracy

    ±10 mm (0.39 in)

  • Process temperature

    -20°C...+60°C (-4°F…+140°F)

  • Main wetted parts

    Housing: plastic PBT/ PC

  • Process connection

    None

  • Max. measurement distance

    15 m (49 ft)

  • Communication

    Wireless

    Mobile connectivity with NB-IoT, LTE-M or 2G (fallback)

  • Options

    Mounting bracket IBC/ pipe

    Mounting bracket wall/ ceiling

  • Application limits

    - DK <1.9

    - Metallized plastic tanks
