Liquiphant FTL81

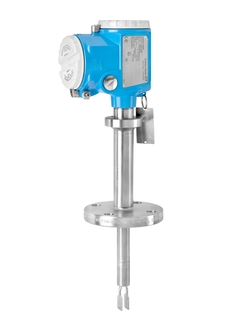

Liquiphant FailSafe FTL81 ©Endress+Hauser

Vibronic measuring principle

Functional safety SIL in process instrumentation

Liquiphant with permanent function check is the safe choice for point level detection in liquids

Point level switch for liquids for FailSafe overfill prevention

Liquiphant FTL81 is a point level switch for use in hazardous areas with all international certificates. FailSafe overfill prevention in applications with functional safety up to SIL3 with one device. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.

  • 장점

    • Use in safety systems requiring functional safety to SIL3 in accordance with IEC 61508 Ed.2.0/ IEC 61511-1/ISA 84-1 and DIN EN ISO 13849

    • Proof test: proof testing interval up to 12 years, Slave devices tested at the press of a button

    • Permanent self-...

  • 적용 분야

    Point level switch for liquids up to SIL3.

    • Process connections: Threads and flanges

    • Temperature: -60 to +280°C (-76 to +540°F)

    • Pressure: -1 to +100bar (-14.5 to +1,450psi)

    • Sensor length: Extension pipe up to 3m (9.8ft)

    • Sensor material: 316L, Alloy C

    • ...

특징 및 사양

뒤로

Details

  • 측정 원리

    Vibration Liquids

  • Characteristic / Application

    Reliable point level switch with extension pipe for MIN and MAX safety applications up to SIL3.
    Dual Sealing / Second line of defense

    Modular housing concept

  • Specialities

    Outstanding features:
    - permanent LIVE signal
    monitors function safety

    - failsafe design and

    - high availability of the measuring values

  • Supply / Communication

    2-wire 4...20 mA

  • Ambient temperature

    -60°C...+70°C
    (-76°F...+160°F)

  • Process temperature

    -60°C...+280°C
    (-76°F...+540°F)

  • Process pressure absolute / max. overpressure limit

    Vacuum...100 bar
    (1450 psi)

  • Min. density of medium

    Density from 0.4 g/cm3
    (0.4 SGU)

  • Main wetted parts

    316L

    Alloy C

  • Process connection

    Flange:

    DN25...DN100,

    ASME 1"...4",

    JIS 10K...20K

    Thread:

    G3/4, G1, R3/4,
    R1, MNPT3/4, MNPT1

  • Sensor length

    Extension pipe up to 3 m (9.8 ft)

  • Communication

    2-wire 4...20 mA

  • Certificates / Approvals

    ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI

  • Safety approvals

    Overfill prevention WHG

    Leakage Detection

    SIL3

  • Design approvals

    EN 10204-3.1

    NACE MR0175, MR0103

    ASME B31.3

    AD2000

  • Marine approval

    GL/ ABS/ LR/ BV/ DNV

  • Options

    PWIS free

    Pressure tight feed through

    Weather protection

  • Components

    Nivotester FTL825, Transmitter

문서 / 매뉴얼 / 소프트웨어

액세서리 / 예비 부품

Nr
Order code
Specification
  • 57
    • Nr 57 Order code 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81, FMP50/FMP51/FMP56, FMR62.

    • Nr 57 Order code 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Nr 57 Order code 52014047

      Sealing ring G1-1/2, 48x55 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.

    • Order code 52003978

      Sliding sleeve G1, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011888

      Sliding sleeve G1, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003663

      Sliding sleeve 100bar G1, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011880

      Sliding sleeve 100bar G1, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118691

      Sliding sleeve G1, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003665

      Sliding sleeve 100bar G1-1/2, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011882

      Sliding sleeve 100bar G1-1/2, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003980

      Sliding sleeve G1-1/2, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011890

      Sliding sleeve G1-1/2, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118693

      Sliding sleeve G1-1/2, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003979

      Sliding sleeve NPT1, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011889

      Sliding sleeve NPT1, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003667

      Sliding sleeve 100bar NPT1, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011881

      Sliding sleeve 100bar NPT1, 316L, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118694

      Sliding sleeve NPT1, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003981

      Sliding sleeve NPT1-1/2, 316L

      Switch point adjustment pressureless condition. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011891

      Sliding sleeve NPT1-1/2, 316L, 3.1

      Switch point adjustment pressureless condition. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 52003669

      Sliding sleeve 100bar NPT1-1/2, 316L

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Usage: FTL51, FTL71, FTL81.

    • Order code 52011883

      Sliding sleeve 100bar NPT1-1/2, 316L,3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: 316L. Inspection cert. EN10204-3.1 material (316L wetted parts). Usage: FTL51, FTL71, FTL81.

    • Order code 71118695

      Sliding sleeve NPT1-1/2, AlloyC22, 3.1

      Switch point adjustment. Max 100bar process pressure. :: Disassembly protect. under pressure. Material: AlloyC22. Inspection cert. EN10204-3.1 material (AlloyC22 wetted parts). Usage: FTL51, FTL71.

    • Order code

      Weld-in adapter and correspondig sealings

    • Order code 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35.

    • Order code 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35. Usage: TM401/TM411, TMR35.

    • Order code 52001221

      Weld-in adapter G1, adjustable, 316L

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

    • Order code 52011898

      Weld-in adapter G1, adjustable,316L, 3.1

      Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.

    • Order code 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Order code 52014424

      Profile gasket 29x36x3.7, FDA, 5 pcs.

      Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.

    • Order code 71075662

      Profile gasket 29x36x3.7, FDA, USP, 5pcs

      Material: silicone VMQ. USP Class VI, FDA. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H.
