**Proservo NMS7

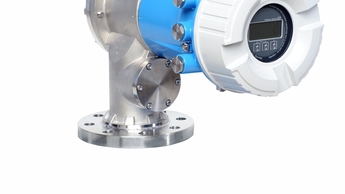

Product picture of: Proservo NMS7

"Product being phased out -
Limited availability".
Level gauge based on servo principle.
Hygiene.
For operation in process + storage
tanks, beverage, food stuff liquid
measurement.

특징 및 사양

뒤로

Details

  • 측정 원리

    Servo / Float Tank Gauging

  • Characteristic / Application

    High precision measurement for liquid level, interface, density for hygienic applications.

  • Supply / Communication

    85-264VAC
    20-25VAC/20-62VDC

  • Accuracy

    +/-0.7 mm (+/-0.03")

  • Ambient temperature

    Standard:

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

    Optional:

    -40 °C ... 60 °C

    (-40°F ... 140 °F)

  • Process temperature

    -200 °C ... 200 °C

    (-328 °F ... 328 °F)

  • Process pressure absolute / max. overpressure limit

    5.88 bar g

    (85.28 psi)

  • Main wetted parts

    SUS316

  • Process connection

    DN80 ... DN150

    3" ... 6"

  • Max. measurement distance

    Standard: maximum 36 m (53.33 ft)

  • Communication

    4 ... 20 mA HART

    Modbus

    V1

    WM550

    BPM

    Mark-Space

    Contact relay x4

  • Certificates / Approvals

    TIIS

  • Safety approvals

    SIL2

  • Application limits

    Stilling well or guide wires for turbulent application
    Recommend PTFE displacer for high viscosity application
    Interface measurement requires min. difference of 0.100 g/ml between layers
