사양 정보
-
Max. measurement error
Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s) -
Measuring range
0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)
-
Medium temperature range
–20 to +150 °C (–4 to +302 °F)
-
Max. process pressure
PN 40, Class 150, 20K
-
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
적용 분야

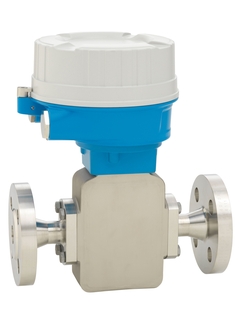

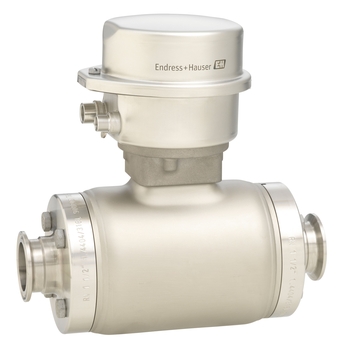

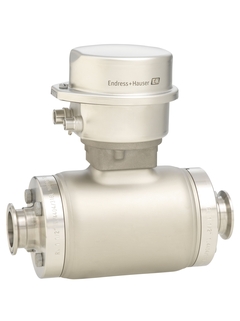

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its innovative remote transmitter Promag H 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated to demanding applications in the food and beverage as well as in life sciences industries
Device properties
Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP, SIP cleanable
Remote version with up to 4 I/Os; hygienic sensor connection housing with IP69
Backlit display with touch control & WLAN access
Standard cable between sensor & transmitter
장점
Multivariable measurement for flow, temperature and conductivity
Flexible installation concept – numerous hygienic process connections
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology
동영상

FLEX 선택 | 기술적 우수성 | 단순성 |
---|---|---|
Fundamental 선택 기본적인 측정 요구사항 충족 |
기술적 우수성
|
단순성
|
Lean 선택 핵심 프로세스를 손쉽게 처리 |
기술적 우수성
|
단순성
|
Extended 선택 혁신적인 기술로 프로세스 최적화 |
기술적 우수성
|
단순성
|
Xpert 선택 가장 까다로운 어플리케이션 요구사항 충족 |
기술적 우수성
|
단순성
구성에 따라 다름 |
기존 제품
-
-
요약 지침서(KA)
Proline Promag 사용 설명서 요약
한국어 버전 - 04/2017
Proline Promag 파트 1/2 전자식 센서
EN KO 01/04/201701/08/201601/12/2015언어:
한국어
버전:
01/04/2017
파일 크기:
1.7 MB
파일 이름:
KA01216DKO_0317.pdf
-
-
-
사용 설명서(BA)
BA Proline Promag H 500 EtherNet/IP
Electromagnetic flowmeter
EN KO 17/07/202402/10/2017언어:
영어
버전:
17/07/2024
파일 크기:
9.6 MB
파일 이름:
BA01720DEN_0224-00.pdf
-
-
-
사용 설명서(BA)
BA Proline Promag H 500 FOUNDATION Fieldbus
Electromagnetic flowmeter
EN KO 17/07/202401/11/2016언어:
영어
버전:
17/07/2024
파일 크기:
8.2 MB
파일 이름:
BA01479DEN_0224-00.pdf
-
-
-
사용 설명서(BA)
BA Proline Promag H 500 PROFIBUS DP
Electromagnetic flowmeter
EN KO 17/07/202401/06/2018언어:
영어
버전:
17/07/2024
파일 크기:
8 MB
파일 이름:
BA01866DEN_0224-00.pdf
-
-
-
사용 설명서(BA)
BA Proline Promag H 500 PROFIBUS PA
Electromagnetic flowmeter
EN KO 17/07/202401/11/201801/08/2016언어:
영어
버전:
17/07/2024
파일 크기:
8.2 MB
파일 이름:
BA01404DEN_0324-00.pdf
-
-
-
사용 설명서(BA)
BA Proline Promag H 500
Electromagnetic flowmeter
PROFINET over Ethernet-APLEN KO 17/07/202410/01/2024언어:
영어
버전:
17/07/2024
파일 크기:
8.9 MB
파일 이름:
BA02103DEN_0224-00.pdf
-
-
-
계기 파라미터(GP)
Proline Promag 500
Electromagnetic flowmeter
HARTEN KO 01/08/202201/09/201902/10/201702/08/2016언어:
영어
버전:
01/08/2022
파일 크기:
2.5 MB
파일 이름:
GP01054DEN_0422-00.pdf
-
