전자 유량계

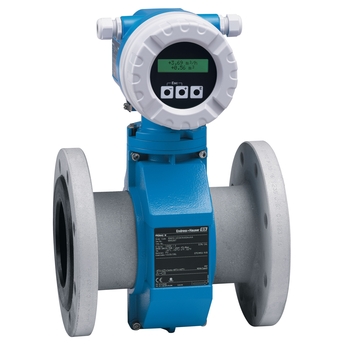

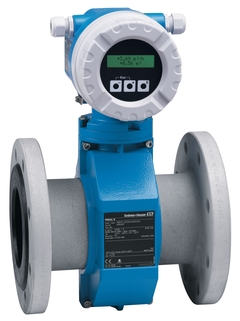

Proline Promag 10W

전자 유량계의 측정 원리

비용 효율적인 트랜스미터가 장착된 수처리 어플리케이션에 최적화된 유량계

Promag W는 음용수에 대한 국제적 승인을 획득했으며, 다양한 어플리케이션에 적용 가능합니다. 기본 어플리케이션 및 직접 통합용 Promag 10 트랜스미터가 장착된 Promag 10W는 다양한 어플리케이션에서 정확한 액체 측정을 보장합니다. Promag 10W는 운영 비용을 최소화하려는 고객에 적합한 솔루션으로 컴팩트 또는 리모트 버전으로 제공됩니다.

사이징
로그인 및 사양 구성 후의 가격

비교

빠른 선택

제안된 옵션 중에서 선택하십시오.

<%label%>
-- selected coding

-- selected label
<%label%>
더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

선택적 추가 항목

계속하려면 개별 사양 구성 을 사용하십시오.

또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

장점
유연한 엔지니어링 - 고정 또는 랩 조인트 프로세스 접촉부를 가진 센서
신뢰할 수 있는 측정 - 0 x DN 인렛런으로 가능한 정확한 측정값
플랜트 가용성 향상 - 인더스트리의 구체적인 요구사항에 적용 가능한 센서
경제성 – 손쉬운 어플리케이션 및 직접 통합을 위한 설계
안전한 작동 – 디스플레이에 명확한 프로세스 정보 표시
완전한 산업 규정 준수 – IEC/EN/NAMUR

적용 분야
압력, 밀도, 온도 및 점성에 거의 영향을 받지 않는 양방향 측정 원리

상하수 처리 산업의 기본적인 어플리케이션에 최적화된 유량계

계기 특징

국제 음용수 인증 획득

IP68 방진방수 등급(타입 6P 외함)

푸시 버튼이 장착된 2라인 디스플레이

컴팩트 또는 리모트 버전의 계기

HART

특징 및 사양

뒤로

Details

측정 원리

Electromagnetic
Product headline

The sensor with degree of protection IP68 (Type 6P enclosure) combined with a highly cost‐effective transmitter. The specialist in the water and wastewater industry for the most demanding applications.
Sensor features

Secure, reliable long‐term operation – robust and completely welded sensor. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. International drinking water approvals. Degree of protection IP68 (Type 6P enclosure).
Transmitter features

Cost-effective – designed for easy applications and direct integration. Safe operation – display provides easily readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line display with push buttons. Device as compact or remote version.
Nominal diameter range

DN 25...2000
1"...78"
Wetted materials

Liner: polyurethane; hard rubber
Measured variables

Volume flow
Max. measurement error

±0,5% o.r. ± 2 mm/s (±0,5% o.r. ± 0,08 in/s)
Measuring range

9 dm3/min to 110 000 m3/h (2.5 gal/min to 700 Mgal/day)
Max. process pressure

PN 40, Class 300, 20K
Medium temperature range

'0 to +80 °C (+32 to +176 °F), –20 to +50 °C (–4 to +122 °F)
Ambient temperature range

–40 to +60 °C (–40 to +140 °F)
Sensor housing material

DN 25 to 300 (1 to 12"): AlSi10Mg, coated
DN 25 to 2000 (1 to 78"): Carbon steel with protective varnish
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): Polycarbonate
Transmitter housing material

Powder-coated die-cast aluminum
Degree of protection

Degree of protection: IP66/67, type 4X enclosure; IP68, type 6P enclosure
Display/Operation

Two line display
Push buttons
Outputs

4...20mA + pulse,-/status (configurable)
Digital communication

HART
Power supply

AC 20 to 28 V
AC 85 to 250 V
AC 20 to 28 V / DC 11 to 40 V
Hazardous area approvals

FM
CSA
Product safety

CE, C-tick, EAC marking
Pressure approvals and certificates

Certificate/Test: PED/VDS
Hygienic approvals and certificates

Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920
