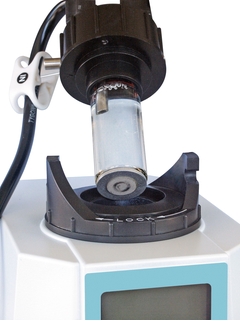

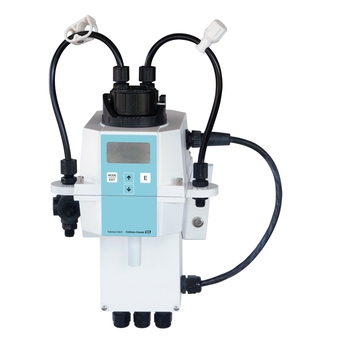

Online turbidity meter
Turbimax CUE21

Online turbidity meter Turbimax CUE21 ©Endress+Hauser
Online turbidity meter Turbimax CUE21 ©Endress+Hauser
  • Online turbidity meter Turbimax CUE21
  • Online turbidity meter Turbimax CUE21

Compact system with sample condition adjustment for drinking and process water applications

Turbimax CUE21 is a reliable turbidity meter for continuous measurement compliant to EN ISO 7027. Operation is simple: connect the water, adjust the settings and the system runs unattended. Turbimax CUE21 provides guided calibration according to predefined standards, helping to streamline maintenance. Its automatic ultrasonic cleaning function extends service intervals offering significant savings in operational expenditure.

빠른 선택

제안된 옵션 중에서 선택하십시오.
    -- selected coding
    -- selected label
    <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
    -- selected coding
    -- selected label
    <%feature%>
      <%label%>
    • 더 많은 옵션을 찾고 계십니까? 계속하려면 개별 사양 구성 을 사용하십시오.
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CUE21
세부 정보 표시 세부 정보 숨기기
세부 정보 표시
빠른 선택으로 돌아가기
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 선택적 추가 항목
계속하려면 개별 사양 구성 을 사용하십시오.
또는

개별 사양 구성

가능한 모든 옵션에서 선택을 계속하십시오.

  • 장점

    • Long service intervals to save on operational costs

    • Fast and easy calibration, verification within seconds

    • Low volume of flow-through cuvette speeds up response time

    • Automatic ultrasonic cleaning function reduces maintenance effort

    • Sample condition...

  • 적용 분야

    Turbimax CUE21 is an online turbidity meter for:

    • Drinking and process water:
      - Process monitoring
      - Filter monitoring and filter backwash in water works
      - Water quality monitoring in water works and distribution networks

    • Utilities of all industries...

특징 및 사양

뒤로

Details

  • 측정 원리

    Single beam scattered light

  • Application

    Online continuous monitoring of clean water :
    - Drinking water
    - Treated process water

  • Installation

    Compact device for bypass-installations.

  • Characteristic

    " Versions with infrared light source
    " Fast and easy calibration
    " Complete primary calibration in less than 5 minutes
    " Verification in seconds
    " Reduced calibration costs and quick response times thanks to low volume sample chamber
    " Automatic continuous ultrasonic cleaning (Autoclean)increases cleaning intervals dramatically
    " Simple modular design
    " Easy to use and service
    " Affordable thanks to modular microprocessor based technology
    " Digital high-speed connections through RS-485 with Modbus
    Optional Features:
    " Flow chamber for bubble suppression
    " Reusable calibration kit

  • Measurement range

    0 - 1000 NTU

  • Measuring principle

    Turbidity measurement using standardised 90° scattered light method acc. to ISO 7027/EN27027(Infrared Light)

  • Design

    The transmitted infrared light beam is scattered by the solid matter particles in the medium. The scattered light beams are detected by scattered light receivers which are arranged at an angle of 90° to the light source.

  • Material

    Housing: ABS
    Flow-through head: Nylon
    Sample cuvette: Borosilicate glass
    Sample cuvette seal: Silicone
    Flow-through fittings: Polypropylene
    Flow-through lock down pins: Stainless steel (AISI 304 or AISI 303)
    Inlet tube: Stainless steel (AISI 316)

  • Dimension

    347,16 x 207,65 x 196,85 mm
    (13.66 x 8.17 x7.75 inches)

  • Process temperature

    1°C - 50°C
    ( 34 - 122°F

  • Process pressure

    max. 13.78 bar / 200 psicontrolled by integral pressure regulator

  • Ingres protection

    IP66

  • Output

    4-20mA, galvanic isolated
    Bi-directional RS-485, Modbus optional.

문서 / 매뉴얼 / 소프트웨어

  • Technical Information Turbimax CUE21 / CUE22

    Turbidimeter for on-line measurement

    Technical Information (TI)
  • Turbimax CUE21 / CUE22 Operating Instructions

    Turbidimeter for online measurement

    Operating Instruction (BA)
  • Przetwornik Liquiline M CM442- FE

    Wieloparametrowy przetwornik Liquiline M CM442 obsługujący dowolne
    czujniki w technologii Memosens.

    Publications (PU)
    04/12
    폴란드어
  • Innovation brochure Turbimax CUE21 - CUE26

    Compact line for turbidity measurement for process, laboratory and field
    application

    Innovations (IN)
    05/05
    영어
  • Innovationsbroschüre Turbimax CUE21 - CUE26

    Kompaktlinie zur Trübungsmessung für Prozess-, Labor- und Feldeinsatz

    Innovations (IN)
    05/05
    독일어
  • Turbimax CUE21

    Trübungsmessung für klare Medien, ausgeführt als Kompaktgerät zur
    Wandmontage
    mit integrierter Ultraschallreinigung

    Tender Text
    12/16
    독일어
  • 51518580 (South Africa)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Japan)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    일본어
  • 51518580 (Slovakia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (South Korea)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Hungary)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    헝가리어
  • 51518580 (United Kingdom)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Denmark)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    덴마크어
  • 51518580 (Slovenia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Finland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    핀란드어
  • 51518580 (Switzerland (Italian))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    이탈리아어
  • 51518580 (Malta)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (India)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Lithuania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Netherlands)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    네덜란드어
  • 51518580 (Czech Republic)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    체코어
  • 51518580 (Norway)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    노르웨이어
  • 51518580 (Estonia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Germany)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    독일어
  • 51518580 (Austria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    독일어
  • 51518580 (European Union)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Switzerland (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Turkey)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    터키어
  • 51518580 (Mexico)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    스페인어
  • 51518580 (Italy)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    이탈리아어
  • 51518580 (Bulgaria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    불가리아어
  • 51518580 (Ukraine)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Portugal)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    포르투갈어
  • 51518580 (Canada (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Russia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    러시아어
  • 51518580 (Ireland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Spain)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    스페인어
  • 51518580 (China)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    중국어
  • 51518580 (Switzerland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    독일어
  • 51518580 (Belgium)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Greece)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    그리스어
  • 51518580 (Canada)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Australia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (USA)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Romania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    루마니아어
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    영어
  • 51518580 (Saudi Arabien)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Sweden)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    스웨덴어
  • 51518580 (France)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Belgium (Dutch))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    네덜란드어
  • 51518580 (Croatia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Latvia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Poland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    폴란드어
  • Kompaktsystem

    Product Code: CUE21-, CUE22-
    Declaration Number: EC_00718_01.18

    EU Declaration
    독일어 , 영어 , fr

액세서리 / 예비 부품

Nr
Order code
Specification

  • 신제품

    • 1/2 채널 트랜스미터 Liquiline CM442

      Liquiline CM442

      Liquiline CM442는 모든 어플리케이션의 프로세스 모니터링과 제어를 위한 디지털 멀티파라미터 트랜스미터입니다.

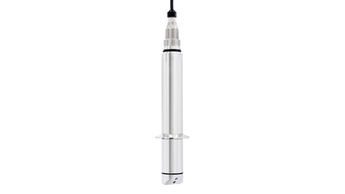

    • CUS52D is a smart inline/immersion turbidity sensor for all water production measuring points.

      Turbimax CUS52D

      Turbimax CUS52D는 용수 생산의 모든 측정 개소에서 무인 작업을 지원하는 정확한 스마트 센서입니다.

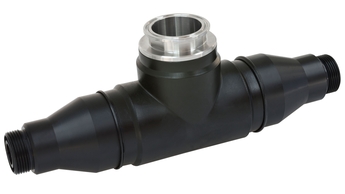

    • Flowfit CUA252 is a turbidity flow cell with extremely low backscattering.

      Flowfit CUA252

      Flowfit CUA252 is a flow assembly with extremely low backscattering enabling reliable measurements in the lowest turbidity range.

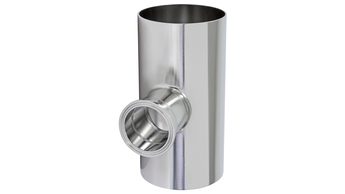

    • Flowfit CUA262 is an inline turbidity flow cell for welding in your skid, pipeline or plant.
