CSF34 is an automatic water sampler for water & wastewater treatment and industrial processes.

Automatic water sampler
for North America
Liquistation CSF34

Fully automatic sampling in water, wastewater and industrial applications

CSF34
가격 로드 중
일시적으로 가격을 로드할 수 없습니다.
Price on request
가격 활성화 중
가격: 정보 제공

이 상품은 해당 지역에서 이용할 수 없습니다

추가 질문이 있으시면 Endress+Hauser 영업 파트너에게 문의하십시오.

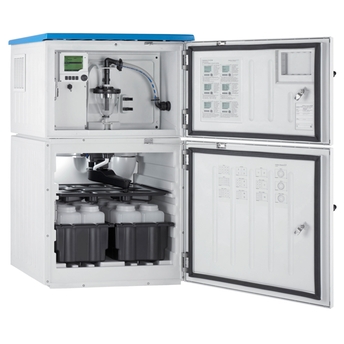

The Liquistation CSF34 automatic water sampler is compliant with US and Canadian regulations. ©Endress+Hauser

Liquistation CSF34 is an automatic water sampler for monitoring wastewater treatment plants, sewage networks, surface water and industrial processes in accordance with US and Canadian regulations.

Heartbeat Technology allows status-oriented maintenance of the automatic water sampler. ©Endress+Hauser

Heartbeat Technology allows status-oriented maintenance of the automatic water sampler..

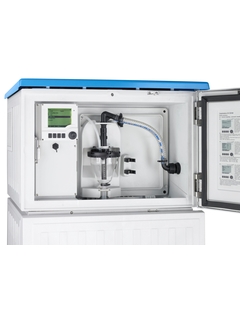

The CSF34 vacuum sampler offers accurate sample volumes and a high sample transport velocity. ©Endress+Hauser

Liquistation CSF34 with vacuum pump. It is used for most standard sampling applications as it offers accurate, reproducible sample volumes and a high sample transport velocity.

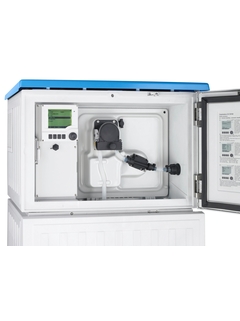

The CSF34 peristaltic sampler allows cyclic rinsing of the suction line and variable sample volumes. ©Endress+Hauser

Liquistation CSF34 with peristaltic pump. This version is recommended when cyclic rinsing of the suction line or variable sample volumes are desired.

Liquistation CSF34 is an automatic water sampler for monitoring wastewater treatment plants, sewage networks, surface water and industrial processes in accordance with US and Canadian regulations.

사양 정보

  • Functions

    Stationary sampler

  • Suction height

    8m (26.25ft)

  • Cabinet

    Plastic ASA+PC

  • Process temperature

    Sample temperature 2 to 50°C (36 to 122°F)

  • Process pressure

    max 0,8bar ( 11.6PSI)

적용 분야

Sampling made safe and easy. Liquistation CSF34 complies with North American water regulation and features a fail-safe cooling system and vandalism-proof housing guaranteeing outstanding safety for your samples. Easy, menu-guided sample programming and tool-free maintenance save you time in your everyday tasks. Liquistation can be upgraded to a complete measuring station for modern environmental monitoring at any time giving you the flexibility to address future demands.

Liquistation CSF34 is available in the USA, Canada, and Mexico. It is suitable for the following applications:

  • Municipal and industrial wastewater treatment plants

  • Stormwater, watershed, and river monitoring

  • Resource water

  • Laboratories and water authorities

  • Determination of total maximum daily loads (TMDL)

  • Monitoring of liquid media in industrial processes

장점

  • Automatic water sampling in full compliance with US and Canadian regulations and the ISO 5667 standard

  • 100% adaptable to any monitoring task from time- or flow-controlled sampling to event-controlled sampling and multiple sampling routines

  • By connecting up to four Memosens sensors, the sampler can be upgraded to a fully-fledged measuring station (e.g. for event monitoring)

  • Offers all Liquiline platform benefits, including uniform operation and standardized components, and supports fieldbus-independent data transfer to Netilion with Liquiline Edge Module CYY7 enabling remote monitoring and IIoT services

  • Fully integrable in any process control system thanks to digital fieldbus communication and remote access via web server

  • Quick cleaning and maintenance thanks to easy, tool-free removal of wetted parts. Heartbeat Technology enables status-oriented maintenance of the device, saving resources and costs

  • Latest and environmentally friendly cooling technology without hydrofluorocarbons (HFC) for optimal processing of your samples
